Italian technology CNC pipe/tube bending machine

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    US $16000.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GMACC
Model Number:
GM-SB-28CNC
Machine Type:
Beading Machine
Raw Material:
Pipe
Material / Metal Processed:
Stainless Steel
Power:
Cnc
Automation:
Automatic
Extra Services:
End Forming
Certification:
ISO 9001:2000
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Iron Frame
Port
SHANGHAI

pipe bending machine :

  • Machine Characteristics

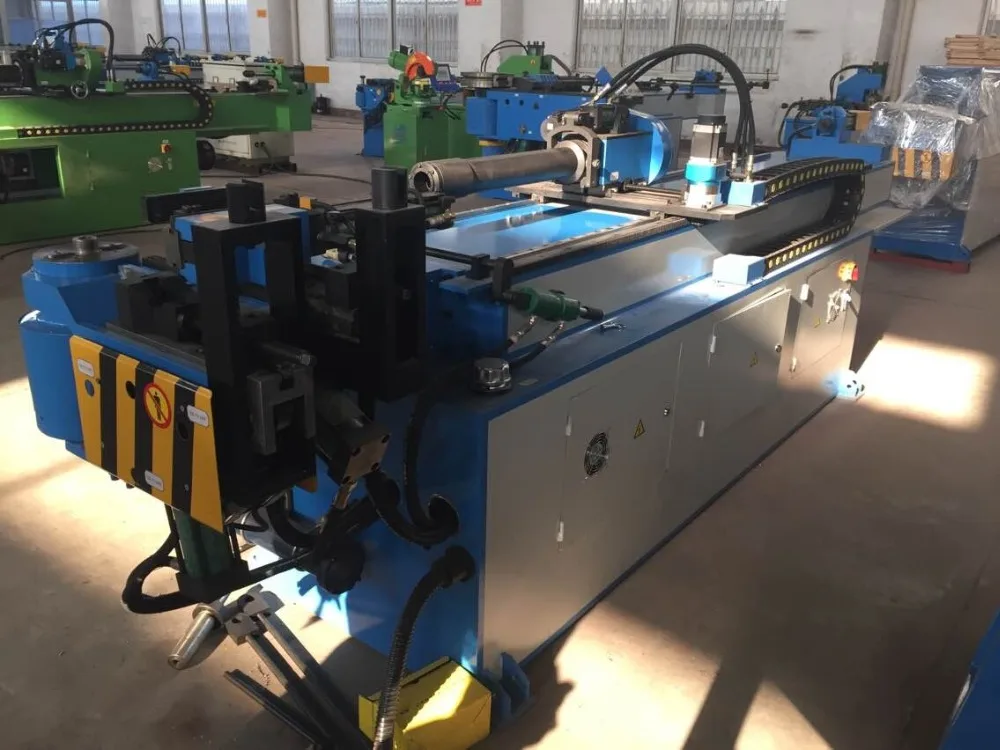

SB-CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinatesofmotion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending springback compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe bending(C axis), pipe rotating(B axis), and pipe feeding(Y axis) are all drove by closed ring servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.

  • Main Technical Parameter



Name

 Unit

Parameter

Max. Bending Capacity

mm

28*2

Bending Radius Range

mm

20-180

Max. Bending Angle

°

190°

Bending Speed

°/sec

 80

Turning Speed

°/sec

280

Feeding Speed

mm/sec

1000

Bending Precision

°

 ±0.10

Turning Precision

°

±0.10

Feeding Precision

mm

±0.10

Turning Servomotor Power

kW

 0.4

Feeding Servomotor Power

kW

1

Though Effective Distance

mm

1850

System Motor Power

kW

2.2

Max. Pressure

Kg/cm

12

Oil Pump Delivery Volume

L

16

L*W*H (Packaging Dimension)

mm

3500*650*1300

 Weight

 T

1.8



  • Configuration of Hydraulic and Electronic Control System

Name

Manufacturer

Hydraulic Motor

Taiwan Xianma,Taiwan Guangyuan( Imported)

Hydraulic Pump

Yuken,HYDROMAX(Imported)

Hydraulic Valve

American Bestar,Taiwan CHIYOUNG(Imported)

Oil way Board

Taiwan Shanghong (Imported)

Cylinder

Taiwan Hisaoka(Imported),Shanghai Jingsheng

Oil tube

Taiwan TATUNG(Imported)

Touch screen

Taiwan Delta,Taiwan Wein View(Imported)

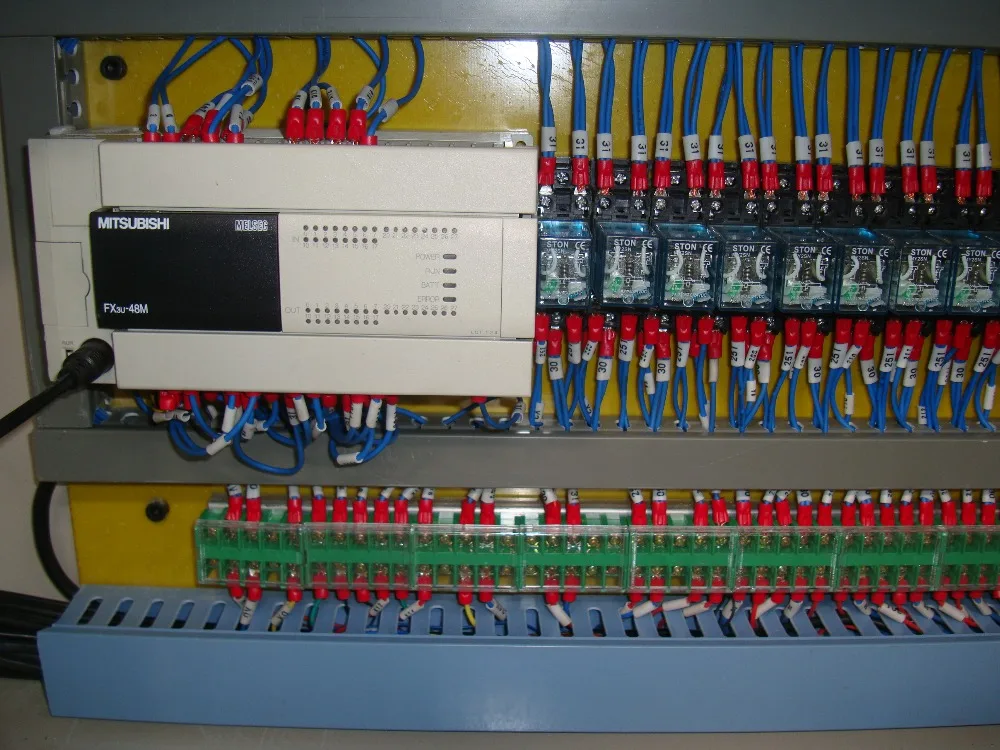

PLC

Mitsubishi,Delta(Imported)

Angle controller

Japan NEMICON(Imported)

Switch power

Taiwan Mean Well(Imported)

Turning Servomotor

Panasonic,Delta(Imported)

Taiwan SHIHLIN(Imported)

Contactor

Other Electric Parts

Taiwan SHIHLIN,German SCHNEIDER(Imported)



Name

Manufacturer



Above configuration is common kind for CNC-2A-1S, which also can be equipped with brand appointed by customers.

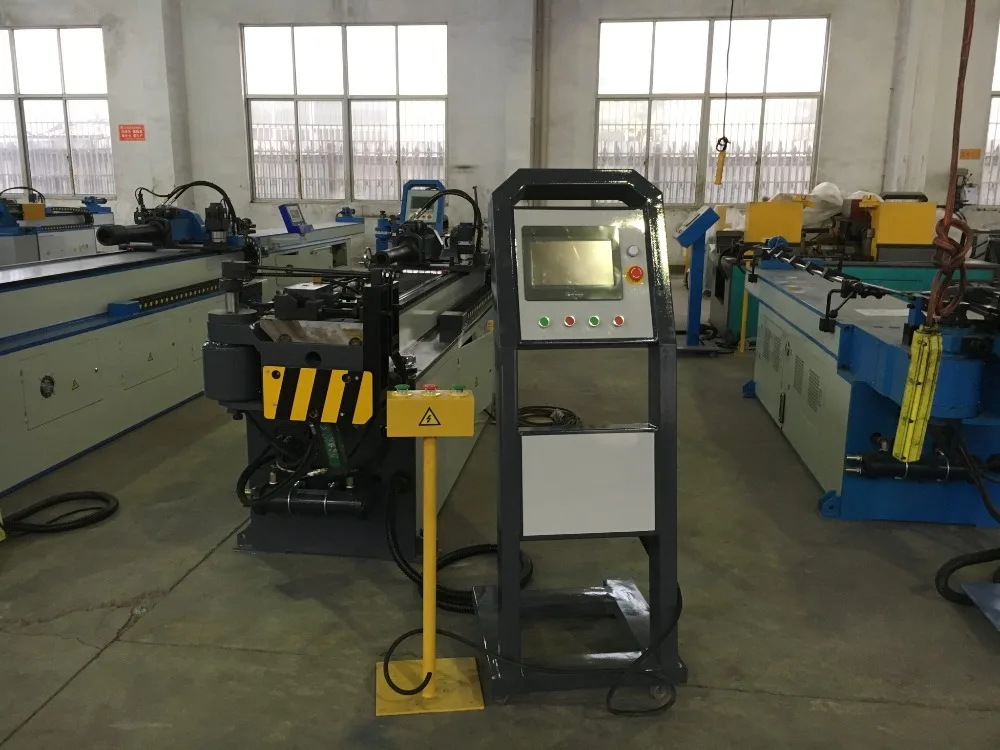

touch screen panel is 10''_DSC0709638NCBA 650CNC3
