Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GMACC
Model Number:
GM-50
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Iron Frame
Port
SHANGHAI
Lead Time :
within 25 days after receiving your 30%deposit

Technic parameter of pipe end forming  machine :

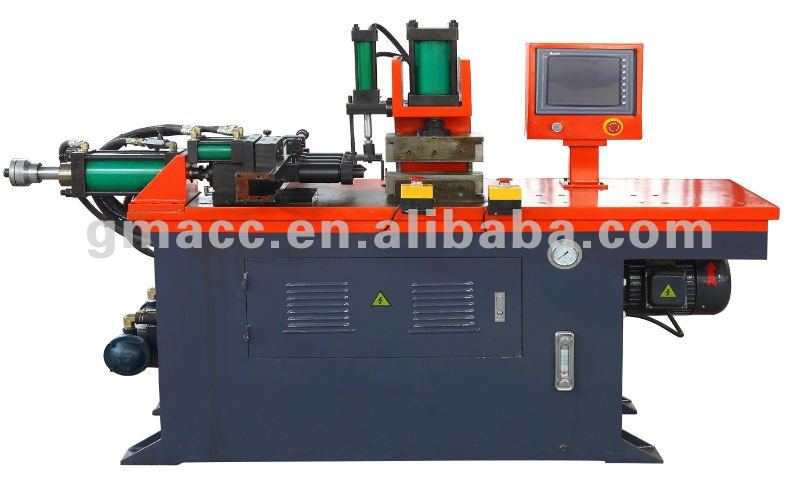

GM-50 End Forming Machine is a kind of high efficiency, full-auto machine. It is controlled by oil and electricity at the same time. It can reduce, enlarge or blunt pipes. The processed shapes, includes concave-convex section, long, flat, square, enlargement, slanting, V-shaped, open slot and others. According to the customers’ choice, the die can be changed.

1.      Construction

Bed used welding pieces, imports of hydraulic systems and electric control three of fabric to complete. The electric parts and hydraulic are imported.

2.      Design Principle

It is controlled by PLC, driven by hydraulic. It is simple to change the dies.

3.      Major Performance.

It adopts PLC control. It is simple to operate, with steady precision, high speed and complete function.

4.      Main Parameters

Name

Unit

GM-50

Max. Reduction Capacity

Mm

50*2

Max. Reduction Length

Mm

120

Reduction time

S

5-8

Oil pump

L

16

Motor Power

Kw

4.0

The capacity of oil tank

L

90

The length of the machine

mm

2000

The width of the machine

mm

600

The height of the machine

mm

1500

The weight of the machine

kg

1300

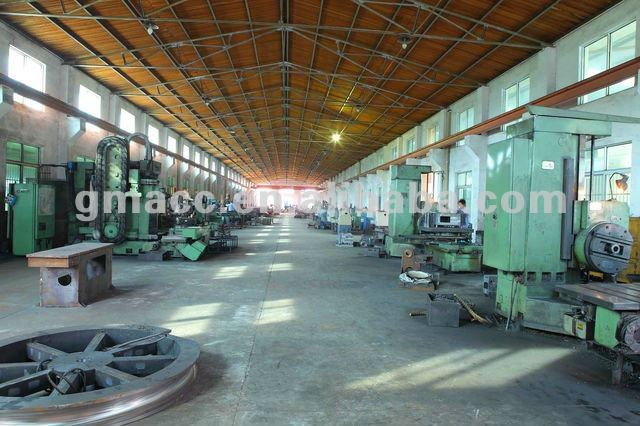

tc1093x-11.jpgassembling workshop.jpgassembling workshop2.jpgFinishing workshop.jpgwarehouse.jpgISO9001.jpg2.jpgmetal disk saw machine.jpg
