hydraulic pipe bending machine

  • >=1 Sets
    US $2000.00
Model Number:
GM-SB-38CNC
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
GMACC
After-sales Service Provided:
Free spare parts, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
1 Year
Color: as per customer's requirement:
Technical: cold bending
CERTIFICATION: ISO9001:2000:
HS Code: 8462219000
Supply Ability
Supply Ability:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
IRON FRAME
Port
SHANGHAI

GM-SB-38CNC Full-Auto Numerical Control

Single-Head Bending Machine

Model:SB38×2A×1S

Ø Machine Characteristics

SB-SB-38CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating(B axis), and pipe feeding(Y axis) are both driven by servomotor. Pipe bending(C axis) is hydraulic.

Ø Main Technical Parameter

Name

 Unit

Parameter

Max. Bending Capacity

mm

38*2

Bending Radius Range

mm

20-200

Max. Bending Angle

°

190°

Bending Speed

°/sec

60

Turning Speed

°/sec

200

Feeding Speed

mm/sec

1000

Bending Precision

°

 ±0.10

Turning Precision

°

 ±0.10

Feeding Precision

mm

 ±0.10

Turning Servomotor Power

kW

0.4

Feeding Servomotor Power

kW

0.75

Though Effective Distance

mm

3200

System Motor Power

kW

4

Max. Pressure

Mpa

16

Oil Pump Delivery Volume

L

14

L*W*H (Packaging Dimension)

mm

3500*700*1300

Weight

 T

2.0



Ø



Ø Configuration of Hydraulic and Electronic Control System

Name

Manufacturer

Hydraulic Motor

Suzhou Jialifan

Hydraulic Pump

Wuxi Tuoli

Hydraulic Valve

Japan Yuken(Imported)

Oil way Board

Suzhou Boguan

Cylinder

Shanghai Qifan

Oil tube

Suzhou Kejia

Touch screen

Taiwan Weinview(Imported)

PLC

Japan Mitsubishi(Imported)

Servo Motor

Japan Mitsubishi(Imported)

Angle controller

Japan Nemicon(Imported)

Switch power

Wenzhou Changxing

Contactor

German SCHNEIDER(Imported)

Other Electric Parts

German SCHNEIDER,Omron, Taiwan SHILIN(Imported)

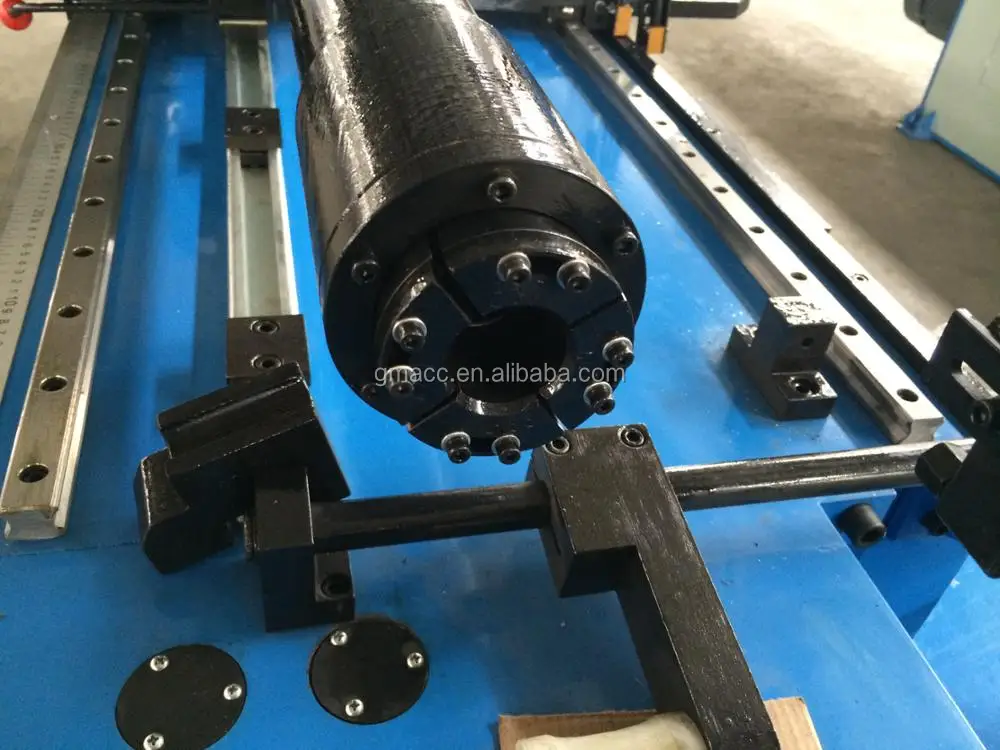

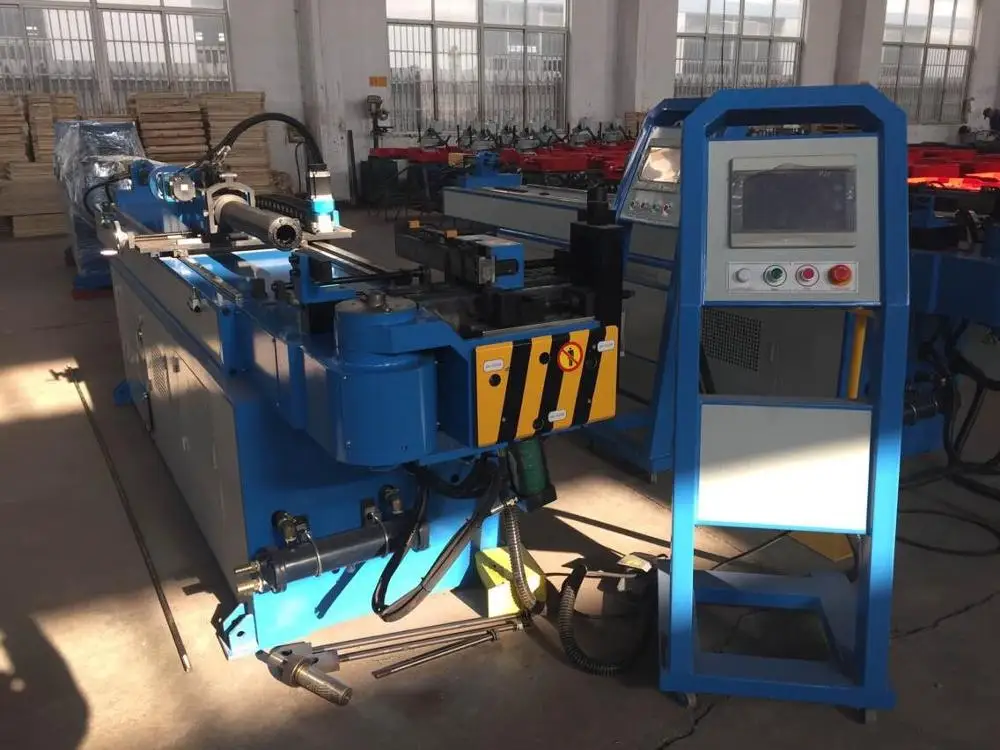

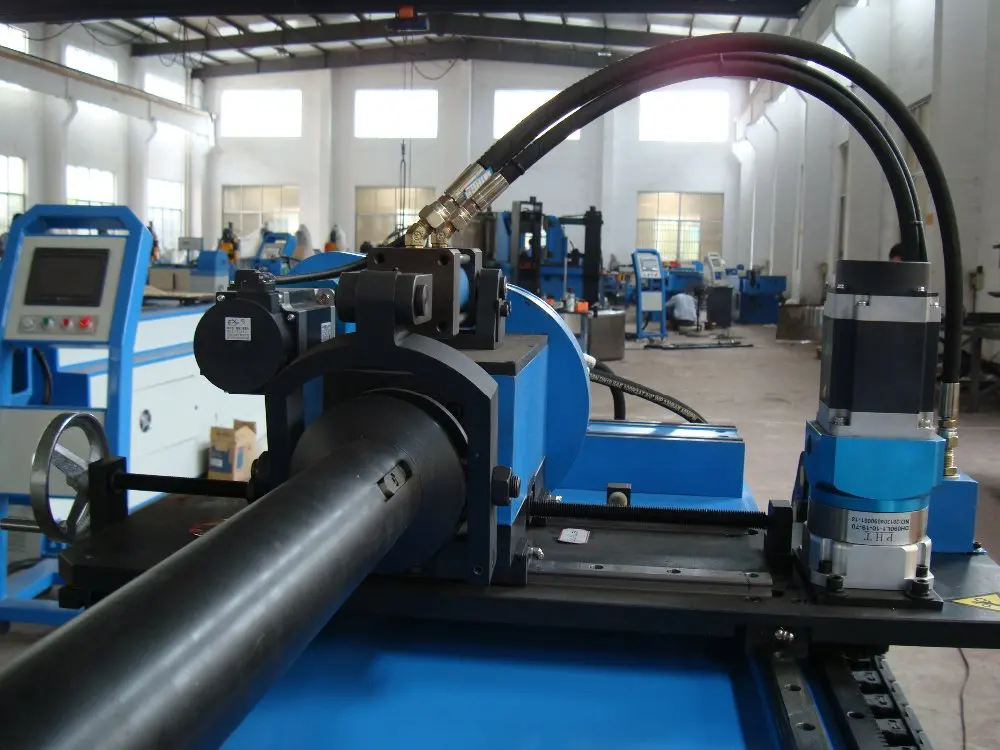

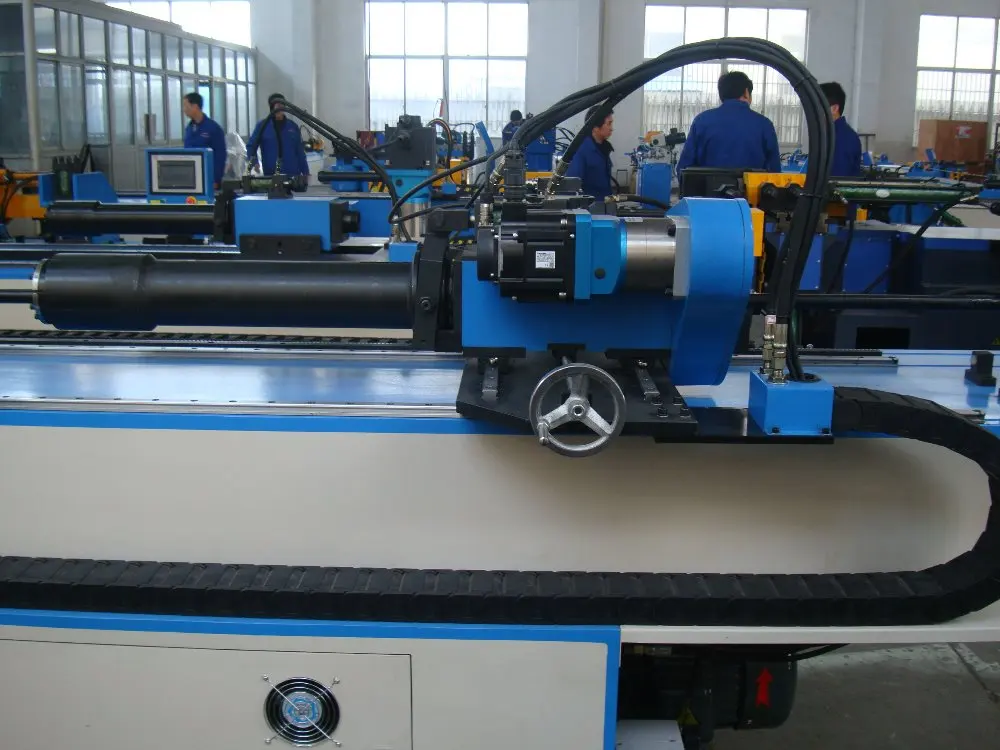

 Machine pictures
