pipe bender machine

FOB Reference Price:Get Latest Price
US $5,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GM-SB-38NCB
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GMACC
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
Pipe
Material / Metal Processed:
SS,Carbon steel,alloy,steel
Power:
Hydraulic
Automation:
semi automatic
Extra Services:
Piercing & Punching
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Automatic:
High efficiemcy
CERTIFICATION:
ISO9001:2000
Applicable material:
stainless steel,copper,aluminium,alloy,galvanized,mild steel
Applicable shape:
round,rectangle,square,oval,solid bar,profile
Color:
as per customer required
Technical:
cold bending
HS Code:
8462219000
Key Words:
Pipe Bender
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Out package:iron frame
Inner package: stretch film
Port
SHANGHAI

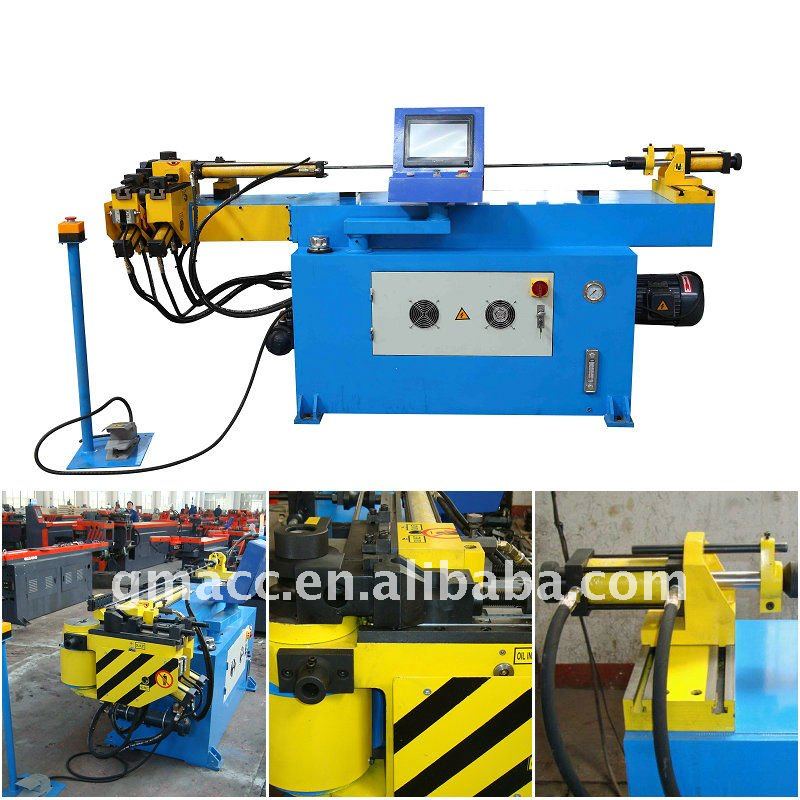

                     Easy Operation Two-Dimensional Hydraulic Pipe Bender

Machine features

1.Applicable tube material: carbons steel, mild steel, soft steel, stainless steel, aluminum, alloy, copper, brass etc.

2.Applicable tube shape: tube, solid bar, square, rectangle, oval, profile etc

3.Controlled through PLC and possesses manual, semi-automatic and full-automatic functions.

4.Equipped with hydraulic-operated clamping tube, encoder-controlled bending angle with precision more or less 0.1 degree.

5.About 200 programs can be inputted into PLC, then show on dialogue-style operation

touch screen, easy to learn and understand.

6.Various Touch screen language are available for choice as per request.

7.Adoption of hydraulic valve and oil way board can control actions individually to prolong

the lifespan of hydraulic parts.

8.Guiding module has auxiliary pushing function and at the same time it possesses

reiteration and entering repeat functions that can make the guiding module length shorten.

9.Counter function can accurately count work piece’s quantity and save data whether on

power-on or power-off situation.

10.Auto lubrication system to protect components and improve the working life of machine;

11.Possess automatic error detection function and limit protecting function, removing or

changing faults easily and quickly.

12.Moveable foot switch with function of auto-start, pause and emergent-shop, safe and convenient.

13.Optional function of core reversing slowly.

14.Optional function of slow bending.

15.Optional function of anticipated mandrel extraction

38B 3.jpg

Main Technical Parameter

Name

Unit

 Parameter

Max. Bending Capacity

mm

38*2

Bending Radius Range

mm

20-200

Max. Bending Angle

°

190°

Though Effective Distance

mm

2000

Bending Speed

°/sec

60

Bending Precision

°

±0.10

System Motor Power

KW

4

Oil Pump Delivery Volume

L

14

Max. Pressure

Mpa

16

L*W*H (Packaging Dimension)

mm

2500*700*1300

Machine Weight

T

1.5

































Configuration of Hydraulic and Electronic Control System

Name

Manufacturer

Hydraulic Motor

Taiwan Guangyuan

Hydraulic Pump

Japan Yuken

Hydraulic Valve

Japan Yuken

Oil way Board

Taiwan Shanghong

Cylinder

Shanghai Jingsheng

Oil tube

Taiwan TATUNG

Touch screen

Taiwan Delta

PLC

Taiwan Delta

Angle controller

Japan Omron

Switch power

Taiwan Mean Well

Contactor

Taiwan SHIHLIN

Other Electric Parts

SCHNEIDER, Omron, Taiwan SHILIN
