Manufacture sells Hydraulic tube bending machine/pipe bender

FOB Reference Price:Get Latest Price
US $5,000-50,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GM-SB-129NCB
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GMACC
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
Sheet / Plate Rolling
Material / Metal Processed:
Carbon Steel
Power:
Hydraulic
Automation:
Automatic
Extra Services:
End Forming
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Product Name:
Tube Bending Machine
CERTIFICATION:
ISO9001:2000
Applicable material:
stainless steel,copper,aluminium,alloy,galvanized,mild steel
Applicable shape:
round,rectangle,square,oval,solid bar,profile
Color:
as per customer required
Technical:
cold bending
HS Code:
8462219000
Tube Bending:
Automatic
Tube Turning:
Manual
Tube Feeding:
Manual
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Out package:iron frame
Inner package: stretch film
Port
SHANGHAI

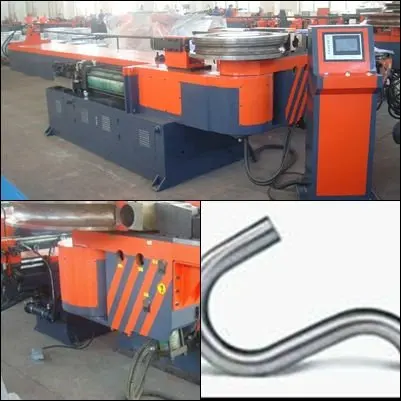

Manufacture sells Hydraulic tube bending machine

Machine Characteristic

The series was adapted in particular to professional world market requirements. All the parts, structure and characters are similar to the standard of mechanical engineering from Europe. Our professional experience and drawings plans for Electric, Electronic, Hydraulic and mechanical from known companies bring to upgrading of the machines' systems to accurate and attractive performance.

Full hydraulic drove, PLC controlled with touch screen pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

Main Technical Parameter

Name

Unit

 Parameter

Max. Bending Capacity

mm

129*12

Bending Radius Range

mm

50-550

Max. Bending Angle

°

 190°

Though Effective Distance

mm

4000

Bending Speed

°/sec

15

Bending Precision

°

±0.10

System Motor Power

KW

18.5

Oil Pump Delivery Volume

L

45

Max. Pressure

Mpa

16

L*W*H (Packaging Dimension)

mm

5600*1350*1300

Machine Weight

T

6.8

Machine features

1.Applicable tube material: carbons steel, mild steel, soft steel, stainless steel, aluminum, alloy, copper, brass etc.

2.Applicable tube shape: tube, solid bar, square, rectangle, oval, profile etc

3.Controlled through PLC and possesses manual, semi-automatic and full-automatic functions.

4.Equipped with hydraulic-operated clamping tube, encoder-controlled bending angle with precision more or less 0.1 degree.

5.About 200 programs can be inputted into PLC, then show on dialogue-style operation

touch screen, easy to learn and understand.

6.Various Touch screen language are available for choice as per request.

7.Adoption of hydraulic valve and oil way board can control actions individually to prolong

the lifespan of hydraulic parts.

8.Guiding module has auxiliary pushing function and at the same time it possesses

reiteration and entering repeat functions that can make the guiding module length shorten.

9.Counter function can accurately count work piece’s quantity and save data whether on

power-on or power-off situation.

10.Auto lubrication system to protect components and improve the working life of machine;

11.Possess automatic error detection function and limit protecting function, removing or

changing faults easily and quickly.

12.Moveable foot switch with function of auto-start, pause and emergent-shop, safe and convenient.

13.Optional function of core reversing slowly.

14.Optional function of slow bending.

15.Optional function of anticipated mandrel extraction.
