hydraulic pipe bending machine

FOB Reference Price:Get Latest Price
US $5,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GMACC
Model Number:
GM-SB-76NCB
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
Pipe
Material / Metal Processed:
Stainless Steel
Power:
Hydraulic
Automation:
semi automatic
Extra Services:
Heat Treating
Certification:
ISO 9001:2000
After-sales Service Provided:
Engineers available to service machinery overseas
Color: as per customer required:
HS Code: 8462299000
SupplyAbility
SupplyAbility:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Iron Frame for sea transportation
Port
SHANGHAI

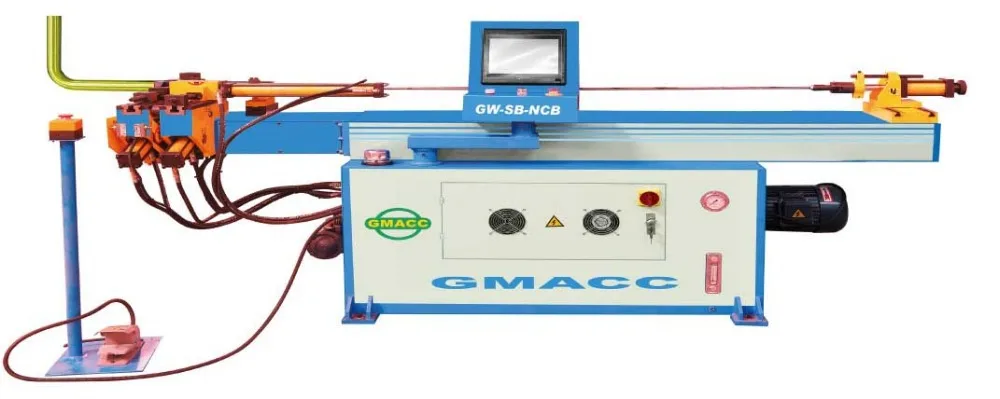

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-76NCB

  • Machine Characteristic

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.


  • Main Technical Parameter



Name

Unit

 Parameter

Max. Bending Capacity

mm

76*5

Bending Radius Range

mm

30-350

Max. Bending Angle

°

  190°

Though Effective Distance

mm

3000

Bending Speed

°/sec

30

Bending Precision

°

±0.10

System Motor Power

KW

7.5

Oil Pump Delivery Volume

L

25

Max. Pressure

Mpa

16

L*W*H (Packaging Dimension)

mm

4200*1200*1350

Machine Weight

T

3.0



  • Configuration of Hydraulic and Electronic Control System



Name

Manufacturer

Hydraulic Motor

Taiwan Xianma,Taiwan Guangyuan( Imported)

Hydraulic Pump

Yuken,HYDROMAX(Imported)

Hydraulic Valve

Taiwan CHIYOUNG(Imported)

Oil way Board

Taiwan Shanghong (Imported)

Cylinder

Taiwan Hisaoka(Imported),Shanghai Jingsheng

Oil tube

Taiwan TATUNG(Imported)

Touch screen

Taiwan Delta,Taiwan Xingjie(Imported)

PLC

Taiwan Delta,Taiwan Xingjie(Imported)

Angle controller

Japan NEMICON(Imported)

Switch power

Taiwan Mean Well(Imported)

Contactor

Taiwan SHIHLIN(Imported)

Other Electric Parts

German SCHNEIDER(Imported)



 Above configuration is common kind for NCB, which also can be equipped with brand appointed by customers.
