auto single-head pipe/tube bending machine GM-SB-38NCBA

FOB Reference Price:Get Latest Price
US $7,100-20,000 / Units | 1 Unit/Units (Min. Order)
Model Number:
GM-SB-38NCBA
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GMACC
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
Steel Bar
Material / Metal Processed:
Carbon Steel
Power:
Hydraulic
Automation:
Automatic
Extra Services:
End Forming

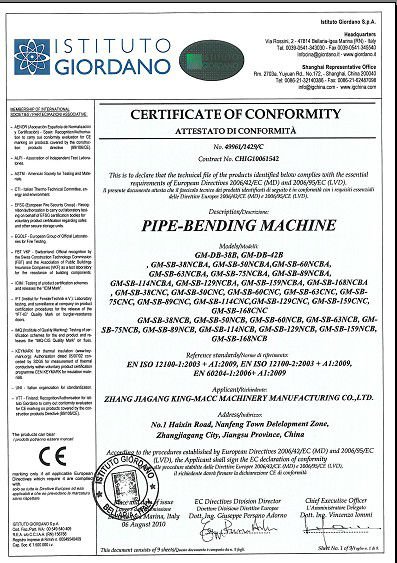

Certification:
ISO 9001:2000
After-sales Service Provided:
Engineers available to service machinery overseas
Color: as per customer's requirement:
HS Code: 8462219000
Supply Ability
Supply Ability:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Iron Frame
Port
SHANGHAI
Video Description

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-38NCBA


Machine Characteristics

NC series single-head bending machine, importing advanced design technology from Italy, is a kind of automatic three-dimensional pipe bending machine, integrated with machine, hydraulic, and electricity. Various data and orders can be input and stored in advanced imported touch screen, which can automatically rotate the angle in three dimension continuously, besides, manual material feeding meets the requirement for processing precision of complicated work pieces all make NC series a professional and high speed European pipe bending equipment.





  • Main Technical Parameter



Name

Unit

  Parameter

Max. Bending Capacity

mm

38*2

Bending Radius Range

mm

20-200

Max. Bending Angle

°

190°

Though Effective Distance

mm

2000

Bending speed

°/sec

45

Turning speed

°/sec

200

Bending precision

°

±0.10

Turning precision

°

±0.10

 Rotating Servomotor Power

KW

0.75

System Motor Power

KW

4

 Oil Pump Delivery Volume

L

17

Max. Pressure

Mpa

16

L*W*H (Packaging Dimension))

mm

4000*700*1300

Weight

T

2.0



  • Configuration of Hydraulic and Electronic Control System



Name

Manufacturer

Hydraulic Motor

Taiwan Xianma,Taiwan Guangyuan( Imported)

Hydraulic Pump

Yuken,HYDROMAX(Imported)

Hydraulic Valve

Taiwan CHIYOUNG(Imported)

Oil way Board

Taiwan Shanghong (Imported)

Cylinder

Taiwan Hisaoka(Imported),Shanghai Jingsheng

Oil tube

Taiwan TATUNG(Imported)

Touch screen

Taiwan Delta(Imported)

PLC

Taiwan Delta(Imported)

Angle controller

Japan NEMICON(Imported)

Switch power

Taiwan Mean Well(Imported)

Contactor

Taiwan SHIHLIN(Imported)

Other Electric Parts

German SCHNEIDER(Imported)



 Above configuration is common kind for NCBA, which also can be equipped with brand appointed by customers.
