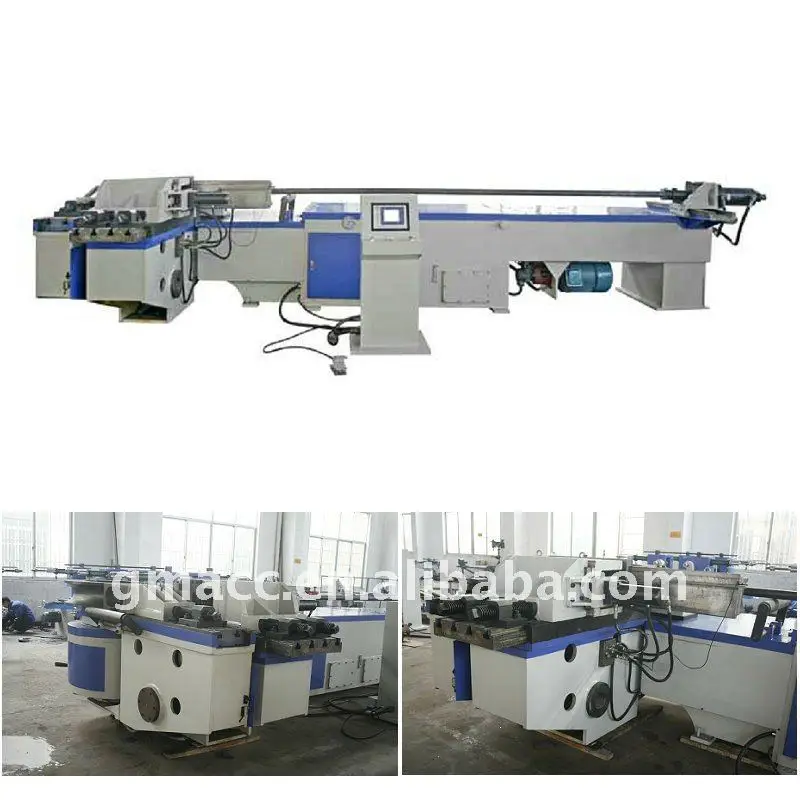

Economical and Practical Hot Sell Hydraulic Pipe Bending Machine
1.Applicable tube material: carbons steel, mild steel, soft steel, stainless steel, aluminum, alloy, copper, brass etc.
2.Applicable tube shape: tube, solid bar, square, rectangle, oval, profile etc
3.Controlled through PLC and possesses manual, semi-automatic and full-automatic functions.
4.Equipped with hydraulic-operated clamping tube, encoder-controlled bending angle with precision more or less 0.1 degree.
5.About 200 programs can be inputted into PLC, then show on dialogue-style operation
touch screen, easy to learn and understand.
6.Various Touch screen language are available for choice as per request.
7.Adoption of hydraulic valve and oil way board can control actions individually to prolong
the lifespan of hydraulic parts.
8.Guiding module has auxiliary pushing function and at the same time it possesses
reiteration and entering repeat functions that can make the guiding module length shorten.
9.Counter function can accurately count work piece’s quantity and save data whether on
power-on or power-off situation.
10.Auto lubrication system to protect components and improve the working life of machine;
11.Possess automatic error detection function and limit protecting function, removing or
changing faults easily and quickly.
12.Moveable foot switch with function of auto-start, pause and emergent-shop, safe and convenient.
13.Optional function of core reversing slowly.
14.Optional function of slow bending.
15.Optional function of anticipated mandrel extraction
Main Technical Parameter
Max. Bending Capacity
Bending Radius Range
Max. Bending Angle
Though Effective Distance
System Motor Power
Oil Pump Delivery Volume
L*W*H (Packaging Dimension)
Ø Configuration of Hydraulic and Electronic Control System
Oil way Board
Taiwan Mean Well
Other Electric Parts
SCHNEIDER,Omron, Taiwan Shilin
Above configuration is common kind for NCB, which also can be equipped with brand appointed by customers.
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd
