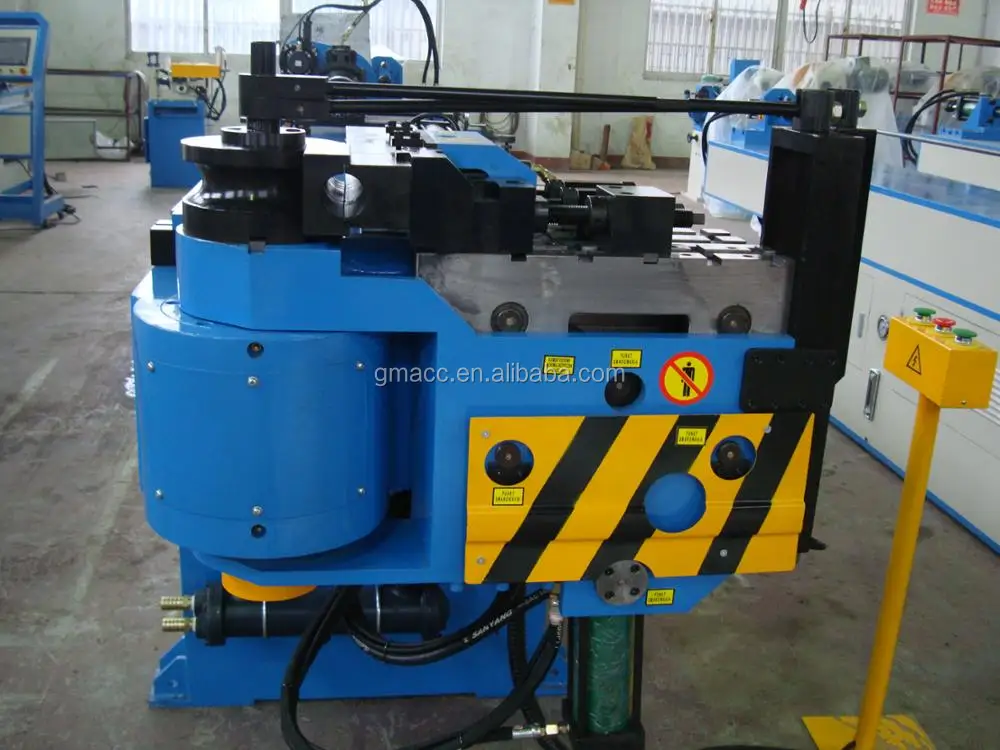

automatic CNC pipe bending machine GM-SB-63NCBA

FOB Reference Price:Get Latest Price
US $7,000-27,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GMACC
Model Number:
GM-SB-63NCBA
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
Sheet / Plate Rolling
Material / Metal Processed:
Carbon Steel
Power:
Cnc
Automation:
Automatic
Extra Services:
End Forming
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
CERTIFICATION:
ISO9001:2000
Applicable material:
stainless steel,copper,aluminium
SupplyAbility
SupplyAbility:
50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Package:iron frame/wooden case suitable for sea transportation
Port
Fob shanghai
Lead Time :
20 WORKING DAYS
Video Description

GM-SB-63NCBA Automatic Three Dimensional

Pipe Bending Machine















Features:

1,Applicable tube material: carbons steel, mild steel, soft steel, stainless steel, aluminum,

alloy, copper, brass etc.

2,Applicable tube shape: tube, solid bar, square, rectangle, oval, profile etc

3,Controlled through PLC and possesses manual, semi-automatic and full-automatic functions.

4. Servo motor controlled rotating ensures the three-dimensional bending and efficiency working.

5,Equipped with hydraulic-operated clamping tube, encoder-controlled

bending angle with precision more or less 0.1 degree.

6,About 200 programs can be inputted into PLC, then show on dialogue-style operation

touch screen, easy to learn and understand.

7,Various Touch screen language are available for choice as per request.

8,Adoption of hydraulic valve and oil way board can control actions individually to prolong

the lifespan of hydraulic parts.

9,Guiding module has auxiliary pushing function and at the same time it possesses

reiteration and entering repeat functions that can make the guiding module length shorten.

10,Counter function can accurately count work piece’s quantity and save data whether in

power-on or power-off situation.

11,Auto lubrication system to protect components and improve the working life of machine;

12,Possess automatic error detection function and limit protecting function, removing or

changing faults easily and quickly.

13,Moveable foot switch with function of auto-start, pause and emergent-shop, safe and convenient.

14,Optional function of core reversing slowly.

15,Optional function of slow bending.

16,Optional function of anticipated mandrel extraction.

Ø Configuration of Hydraulic and Electronic Control System

Name

Manufacturer

Hydraulic Motor

Taiwan Guangyuan( Imported)

Hydraulic Pump

Japan Yuken(Imported)

Hydraulic Valve

Japan Yuken(Imported)

Oil way Board

Taiwan Shanghong (Imported)

Cylinder

Shanghai Jingsheng

Oil tube

Taiwan TATUNG(Imported)

Touch screen

Taiwan Delta,Japan Mitsubishi(Imported)

PLC

Taiwan Delta,Japan Mitsubishi(Imported)

Servo Motor

Taiwan Delta,Japan Mitsubishi(Imported)

Angle controller

German Omron(Imported)

Switch power

Taiwan Mean Well(Imported)

Contactor

Taiwan SHIHLIN(Imported)

Other Electric Parts

German SCHNEIDER,Omron,Taiwan SHIlIN(Imported)



Above configuration is common kind for CNC-2A-1S, which also can be equipped

with brand appointed by customers.



Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd



Contact : Georgina

Mobile: 0086-13606222268

Whatsapp:0086-15962359991

Email: sales@ gmacc.cn

Skype: georgina huang
