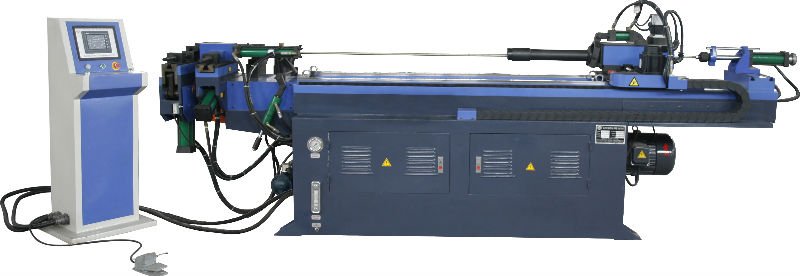

GM-SB-114NCBA Automatic Three Dimensional
Pipe Bending Machine
1,Applicable tube material: carbons steel, mild steel, soft steel, stainless steel, aluminum,
alloy, copper, brass etc.
2,Applicable tube shape: tube, solid bar, square, rectangle, oval, profile etc
3,Controlled through PLC and possesses manual, semi-automatic and full-automatic functions.

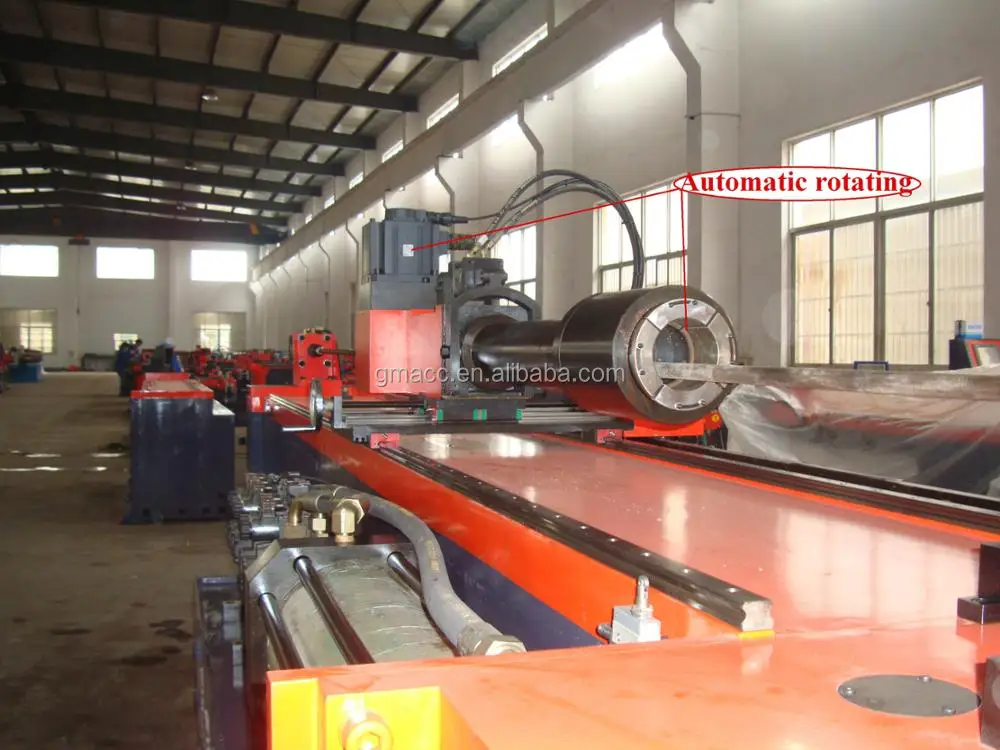

4. Servo motor controlled rotating ensures the three-dimensional bending and efficiency working.
5,Equipped with hydraulic-operated clamping tube, encoder-controlled
bending angle with precision more or less 0.1 degree.
6,About 200 programs can be inputted into PLC, then show on dialogue-style operation
touch screen, easy to learn and understand.
7,Various Touch screen language are available for choice as per request.
8,Adoption of hydraulic valve and oil way board can control actions individually to prolong
the lifespan of hydraulic parts.
9,Guiding module has auxiliary pushing function and at the same time it possesses
reiteration and entering repeat functions that can make the guiding module length shorten.
10,Counter function can accurately count work piece’s quantity and save data whether in
power-on or power-off situation.
11,Auto lubrication system to protect components and improve the working life of machine;
12,Possess automatic error detection function and limit protecting function, removing or
changing faults easily and quickly.
13,Moveable foot switch with function of auto-start, pause and emergent-shop, safe and convenient.
14,Optional function of core reversing slowly.
15,Optional function of slow bending.
16,Optional function of anticipated mandrel extraction.
Ø Configuration of Hydraulic and Electronic Control System
Taiwan Guangyuan( Imported)
Oil way Board
Taiwan Shanghong (Imported)
Taiwan Delta,Japan Mitsubishi(Imported)
Taiwan Mean Well(Imported)
Other Electric Parts
German SCHNEIDER,Omron,Taiwan SHIlIN(Imported)
Above configuration is common kind for CNC-2A-1S, which also can be equipped
with brand appointed by customers.
