used Tube/Pipe Bending Machine GM-38CNC-2A-1S

FOB Reference Price:Get Latest Price
US $6,000-15,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GMACC
Model Number:
GM-SB-38CNC
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
Sheet / Plate Rolling
Material / Metal Processed:
carbons steel, mild steel, soft steel, stainless steel, aluminum,
Power:
Hydraulic
Automation:
Automatic
Extra Services:
End Forming
Certification:
CE, ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Applicable tube material:
carbons steel, mild steel, soft steel, stainless steel, aluminum,
Applicable tube shape:
tube, solid bar, square, rectangle, oval, profile etc.
SupplyAbility
SupplyAbility:
50 Ton/Tons per Month
Packaging & Delivery
Packaging Details
Iron Frame
Port
SHANGHAI
Lead Time :
Shipped in 20 days after payment
Product Description

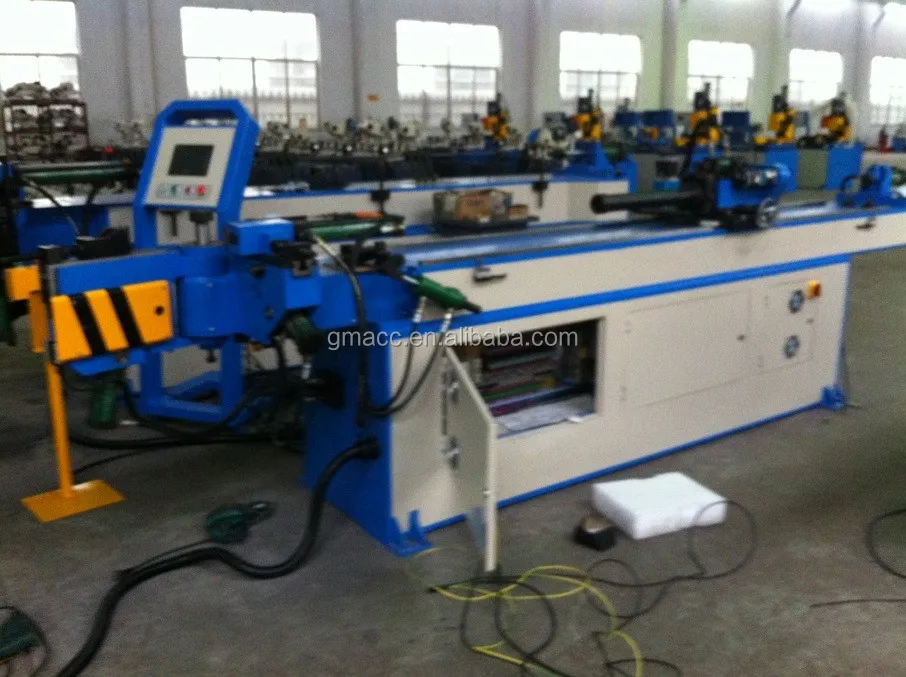

GM-SB-38CNC Full-Auto Numerical Control

Single-Head Bending Machine

Model:SB38×2A×1S

  • Ø Machine Characteristics

SB-SB-38CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe bending(C axis), pipe rotating(B axis), and pipe feeding(Y axis) are all drove by closed ring servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.

  • Ø Main Technical Parameter

Name

 Unit

Parameter

Max. Bending Capacity

mm

38*2

Bending Radius Range

mm

20-200

Max. Bending Angle

°

190°

Bending Speed

°/sec

60

Turning Speed

°/sec

200

Feeding Speed

mm/sec

1000

Bending Precision

°

 ±0.10

Turning Precision

°

 ±0.10

Feeding Precision

mm

 ±0.10

Turning Servomotor Power

kW

0.4

Feeding Servomotor Power

kW

1

Though Effective Distance

mm

2200

System Motor Power

kW

4

Max. Pressure

Mpa

16

Oil Pump Delivery Volume

L

14

L*W*H (Packaging Dimension)

mm

3500*700*1300

Weight

 T

2.0



  • Ø



  • Ø Configuration of Hydraulic and Electronic Control System

Name

Manufacturer

Hydraulic Motor

Germany Siemens( Imported)or Wuxi Taihu

Hydraulic Pump

Taiwan Hydromax(Imported)

Hydraulic Valve

Japan Yuken(Imported)

Oil way Board

Taiwan Shanghong (Imported)

Cylinder

Shanghai Jingsheng

Oil tube

Suzhou Kejia

Touch screen

Taiwan Weinview(Imported)

PLC

Japan Mitsubishi(Imported)

Servo Motor

Japan Mitsubishi(Imported)

Angle controller

Japan Nemicon(Imported)

Switch power

Wenzhou Changjiang

Contactor

German SCHNEIDER(Imported)

Other Electric Parts

German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
