semi-auto pipe tube Bending Machine GM-SB-63NCB

  • >=1 Pieces
    $5,000.00
Model Number:
63NCB
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GMACC
Material / Metal Processed:
ALLOY, Brass / Copper, Carbon Steel, Stainless Steel
Automation:
Automatic
Power:
CNC
Extra Services:
Piercing & Punching
Certification:
ISO 9001:2000
After-sales Service Provided:
Free spare parts, No after-sales service, Engineers available to service machinery overseas
Warranty:
1 Year
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
PIPE
CERTIFICATE:
CE
Applicable material:
stainless steel,copper,aluminium
Supply Ability
Supply Ability:
50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Package:iron frame/wooden case
Port
SHANGHAI

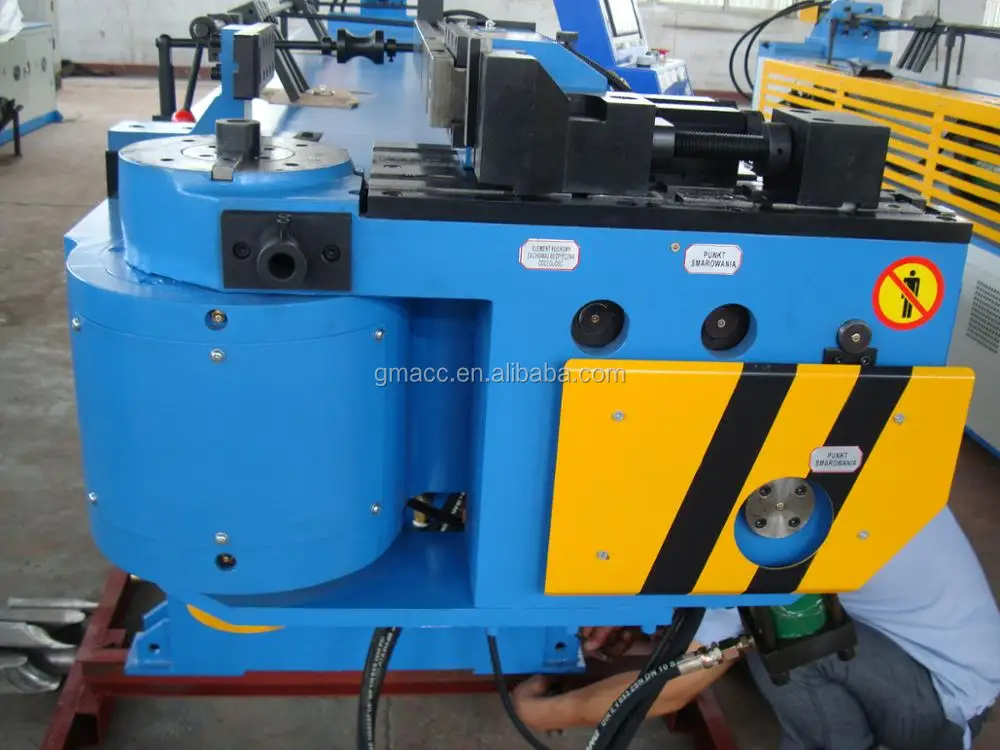

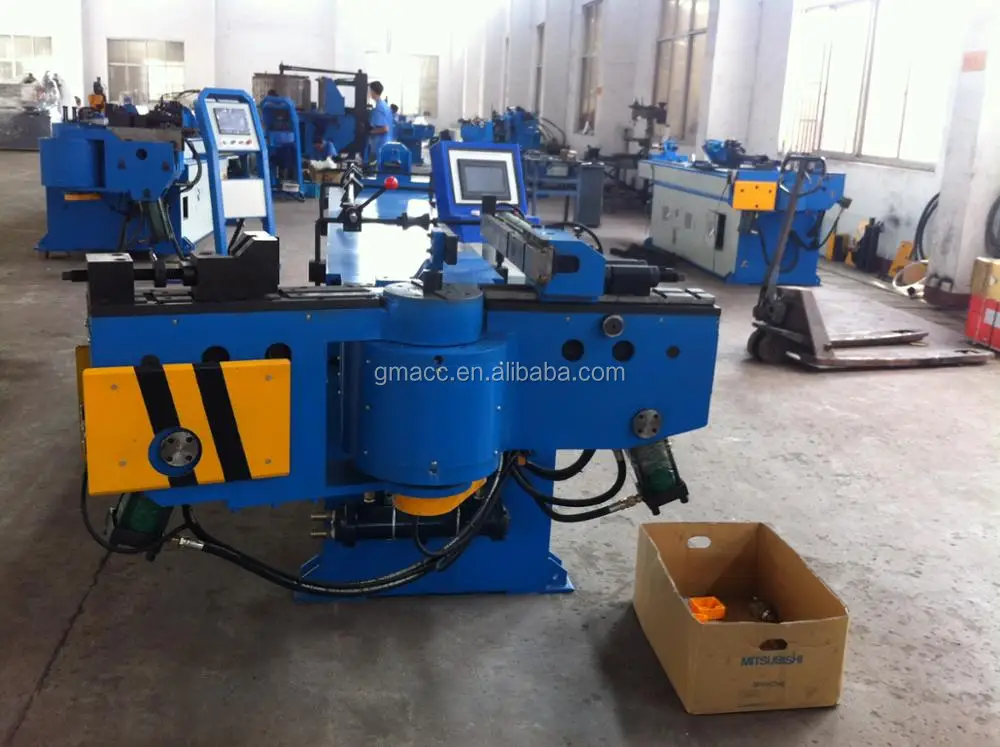

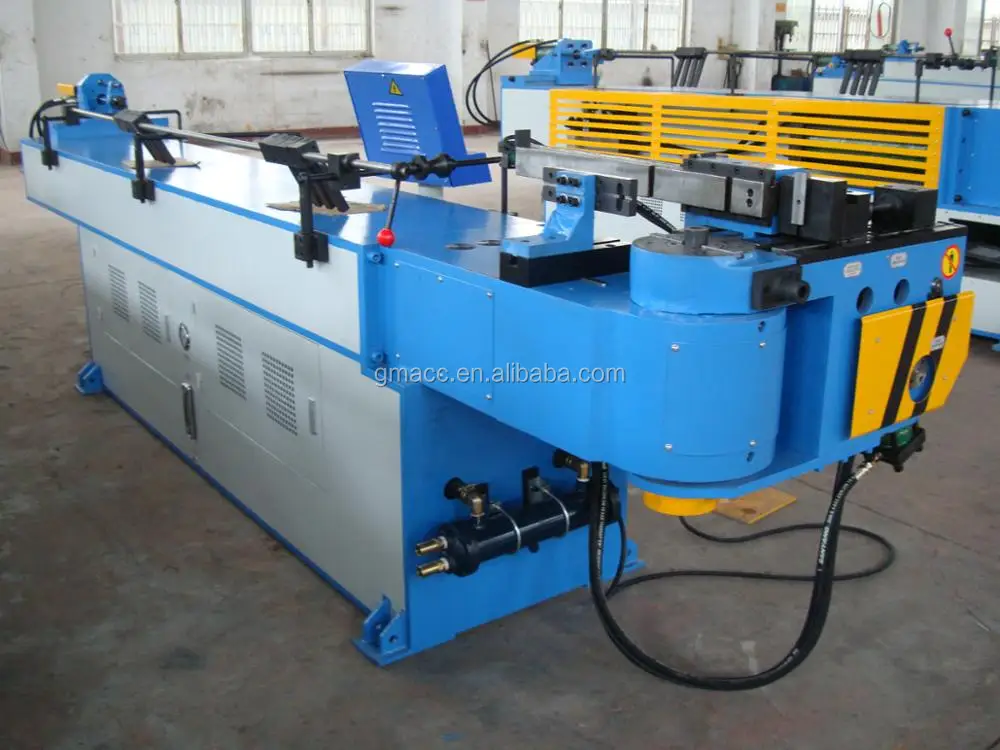

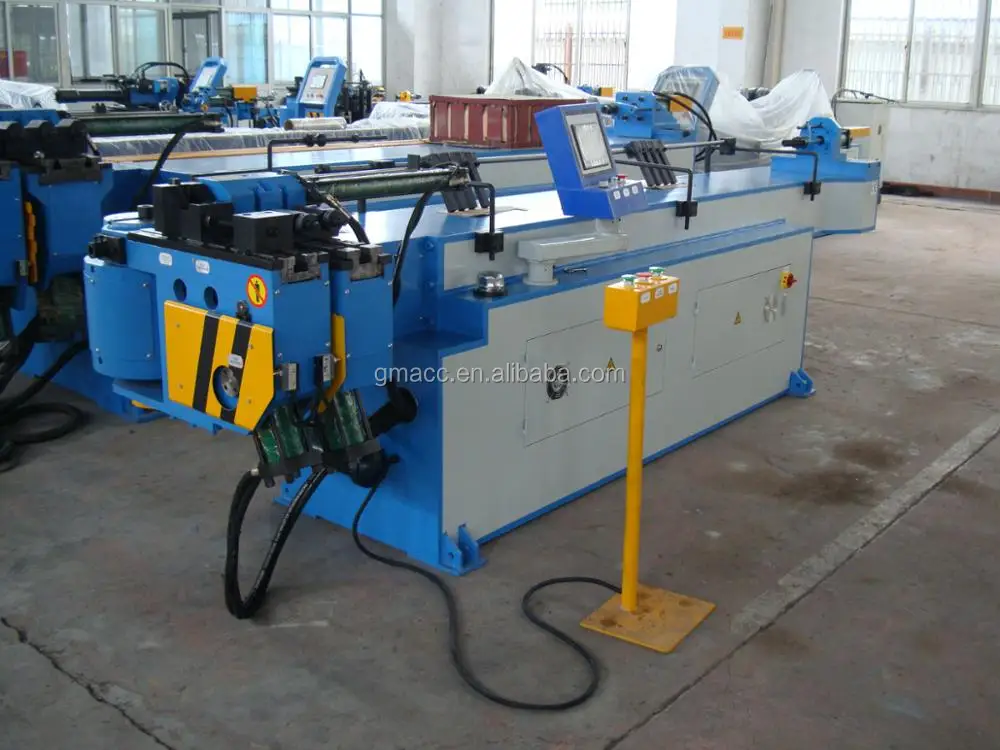

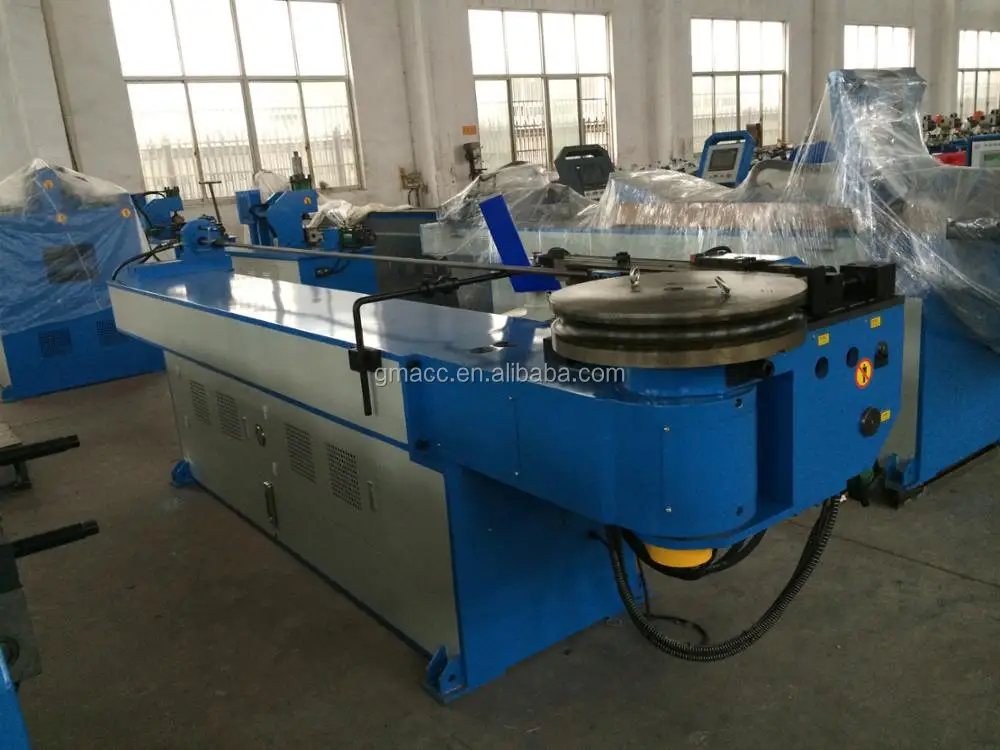

GM-SB-63NCB Numerical Control Single-Head Tube bending Machine:

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-63NCB

Ø Machine Characteristic

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.

Ø Main Technical Parameter



Name

Unit

 Parameter

Max. Bending Capacity

mm

63*4

Bending Radius Range

mm

25-300

Max. Bending Angle

°

 190°

Though Effective Distance

mm

3500

Bending Speed

°/sec

30

Bending Precision

°

±0.10

System Motor Power

KW

5.5

Oil Pump Delivery Volume

L

25

Max. Pressure

Mpa

16

L*W*H (Packaging Dimension)

mm

4500*1200*1350

Machine Weight

T

3.0



Ø Configuration of Hydraulic and Electronic Control System



Name

Manufacturer

Hydraulic Motor

Suzhou Jialifan

Hydraulic Pump

Wuxi Tuoli

Hydraulic Valve

Japan Yuken(Imported)

Oil way Board

Suzhou Boguan

Cylinder

Shanghai Qifan

Oil tube

Suzhou Kejia

Touch screen

Taiwan Weinview(Imported)

PLC

Japan Mitsubishi(Imported)

Angle controller

Japan Nemicon(Imported)

Switch power

Wenzhou Changxing

Contactor

German SCHNEIDER(Imported)

Other Electric Parts

German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
