Quick Details

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: GMACC
  • Model Number: GM-SB-120NCB
  • Machine Type: Pipe and Tube Bending Machine
  • Raw Material: Sheet / Plate Rolling
  • Material / Metal Processed: Carbon Steel
  • Power: Hydraulic
  • Automation: Automatic
  • Extra Services: End Forming
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product Name: Tube Bender
  • CERTIFICATION: ISO9001:2000
  • Applicable material: stainless steel,copper,aluminium,alloy,galvanized,mild steel
  • Applicable shape: round,rectangle,square,oval,solid bar,profile
  • Color: customer required
  • Technical: cold bending
  • HS Code: 8462219000
  • Tube Bending: Automatic
  • Tube Turning: Manual
  • Tube Feeding: Manual

Packaging & Delivery

Packaging Details Out package:iron frame
Inner package: stretch film
Delivery Time 25 working days

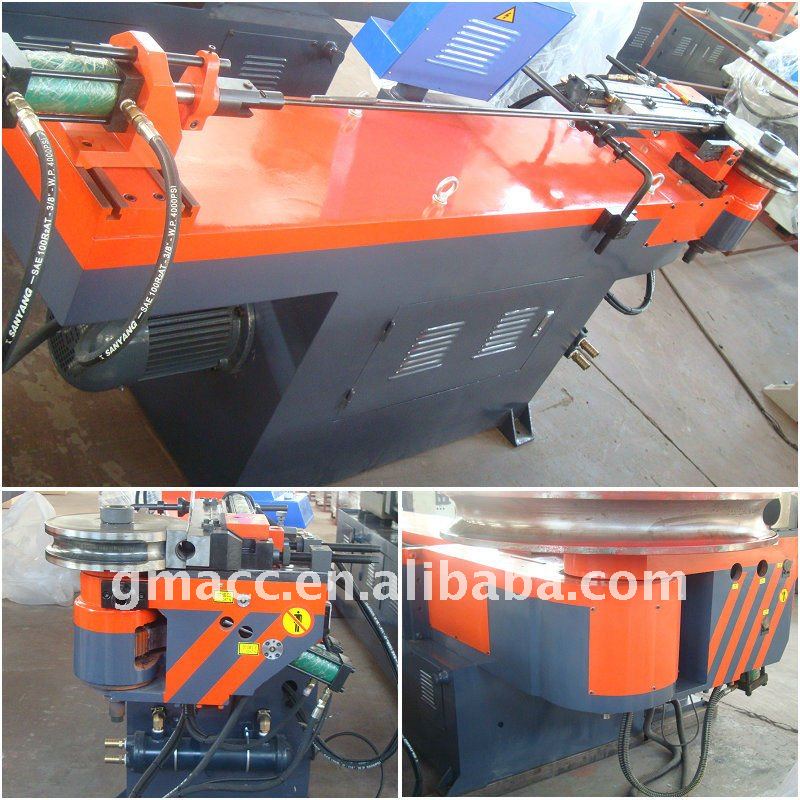

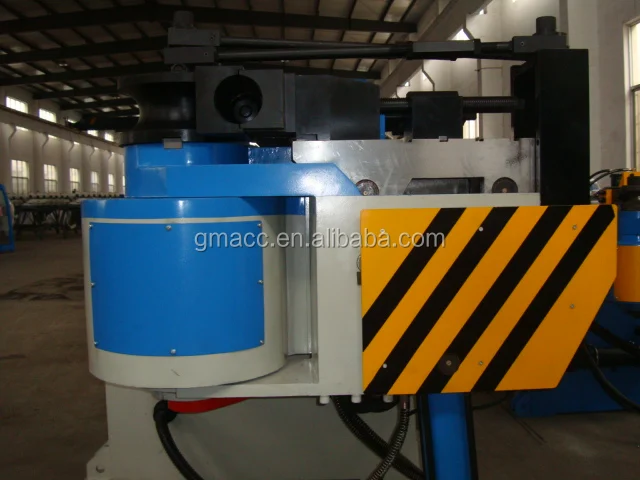

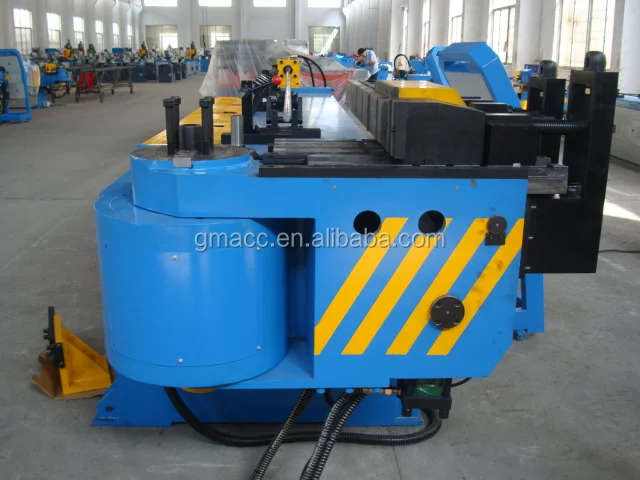

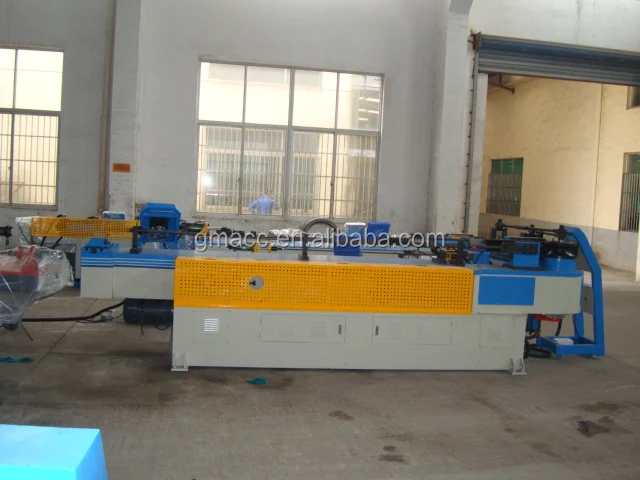

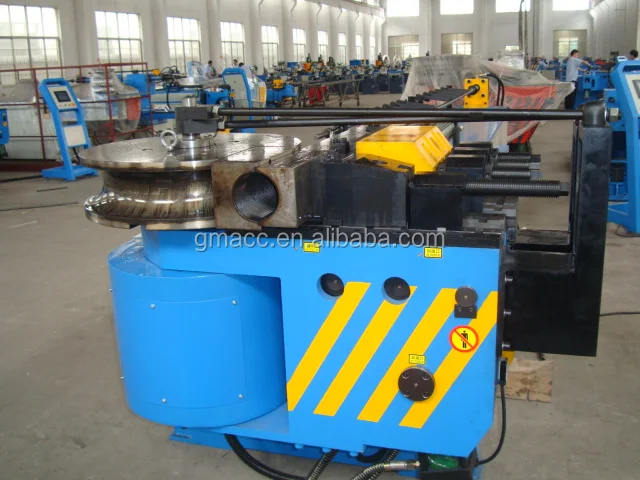

PLC Controlled Automatic Tube Bender

Machine Features:

1.Applicable tube material: carbons steel, mild steel, soft steel, stainless steel, aluminum, alloy, copper, brass etc.

2.Applicable tube shape: tube, solid bar, square, rectangle, oval, profile etc

3.Controlled through PLC and possesses manual, semi-automatic and full-automatic functions.

4.Equipped with hydraulic-operated clamping tube, encoder-controlled bending angle with precision more or less 0.1 degree.

5.About 200 programs can be inputted into PLC, then show on dialogue-style operation

touch screen, easy to learn and understand.

6.Various Touch screen language are available for choice as per request.

7.Adoption of hydraulic valve and oil way board can control actions individually to prolong

the lifespan of hydraulic parts.

8.Guiding module has auxiliary pushing function and at the same time it possesses

reiteration and entering repeat functions that can make the guiding module length shorten.

9.Counter function can accurately count work piece’s quantity and save data whether on

power-on or power-off situation.

10.Auto lubrication system to protect components and improve the working life of machine;

11.Possess automatic error detection function and limit protecting function, removing or

changing faults easily and quickly.

12.Moveable foot switch with function of auto-start, pause and emergent-shop, safe and convenient.

13.Optional function of core reversing slowly.

14.Optional function of slow bending.

15.Optional function of anticipated mandrel extraction.







Main Technical Parameter

Name

Unit

 Parameter

Max. Bending Capacity

  mm

120*10

Bending Radius Range

mm

40-500

Max. Bending Angle

°

190°

Though Effective Distance

mm

3500

Bending Speed

°/sec

20

Bending Precision

°

±0.10

System Motor Power

KW

15

Oil Pump Delivery Volume

L

36

Max. Pressure

Mpa

16

L*W*H (Packaging Dimension)

mm

5500*1350*1300

Machine Weight

T

5.5































Configuration of Hydraulic and Electronic Control System

Name

Manufacturer

Hydraulic Motor

Taiwan Guangyuan

Hydraulic Pump

Japan Yuken

Hydraulic Valve

Japan Yuken

Oil way Board

Taiwan Shanghong

Cylinder

Shanghai Jingsheng

Oil tube

Taiwan TATUNG

Touch screen

Taiwan Delta

PLC

Taiwan Delta

Angle controller

Japan Omron

Switch power

Taiwan Mean Well

Contactor

Taiwan SHIHLIN

Other Electric Parts

SCHNEIDER, Omron, Taiwan SHILIN



































Above configuration is common kind for NCB, which also can be equipped with brand appointed by customers.
