CNC 3 axis pipe bending machine

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $10000000.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GMACC
Model Number:
GM-SB-76CNC
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
Sheet / Plate Rolling
Material / Metal Processed:
Carbon Steel
Power:
Cnc
Automation:
Automatic
Extra Services:
End Forming
Certification:
ISO 9001:2000
After-sales Service Provided:
Engineers available to service machinery overseas
CERTIFICATE:
CE
Applicable material:
stainless steel,copper,aluminium
Supply Ability
Supply Ability:
50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Package:iron frame/wooden case
Port
Shanghai Port

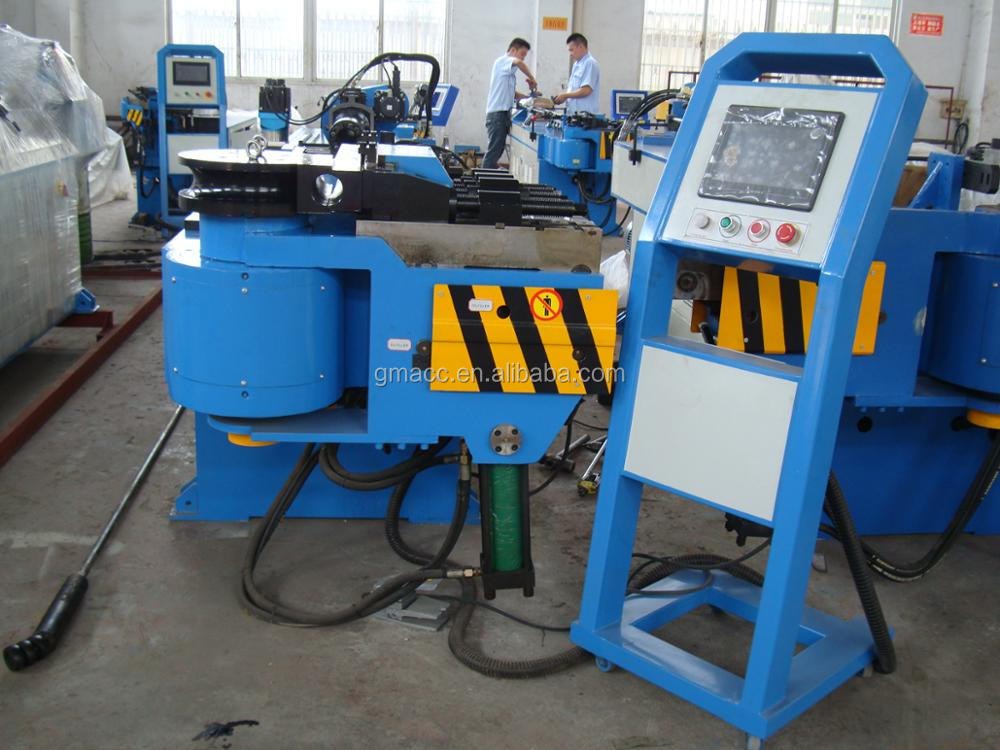

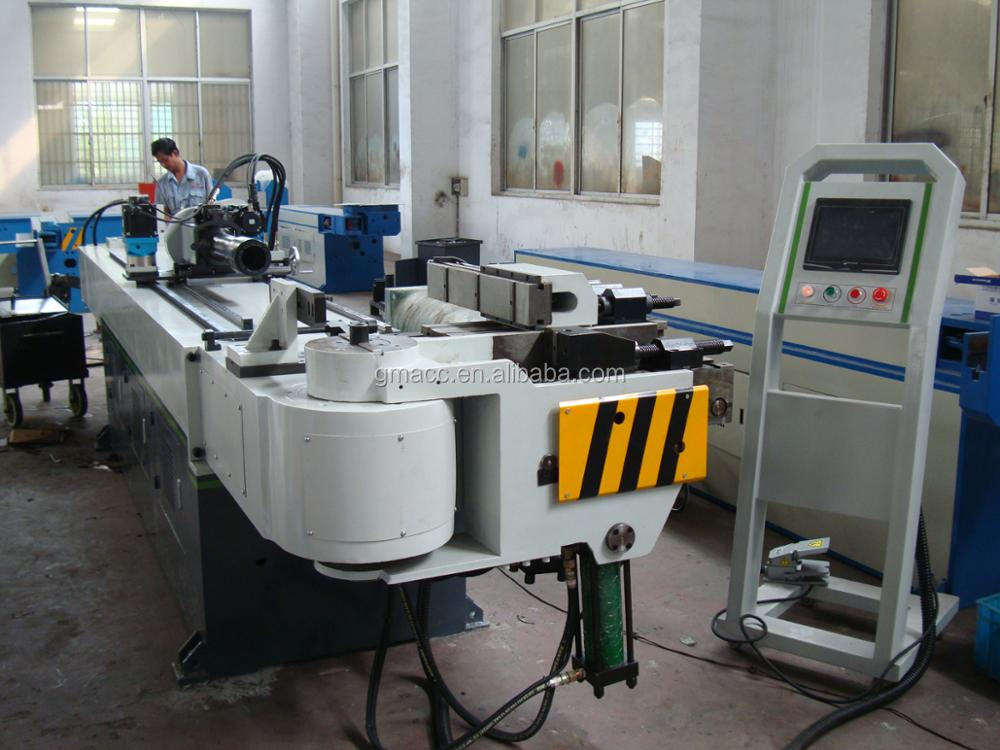

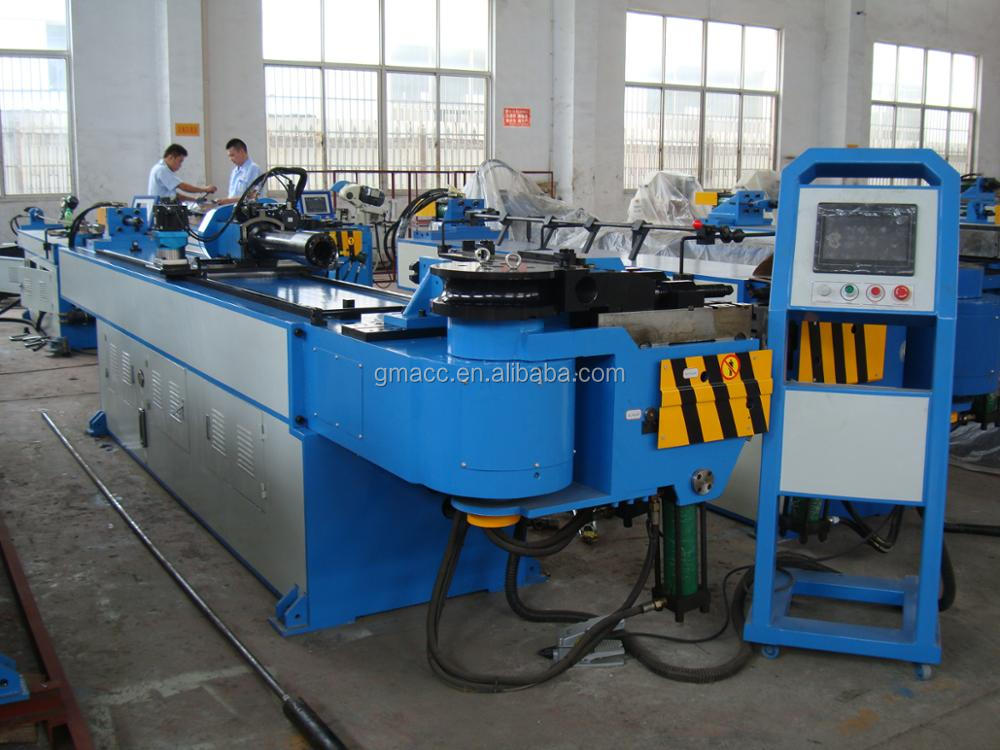

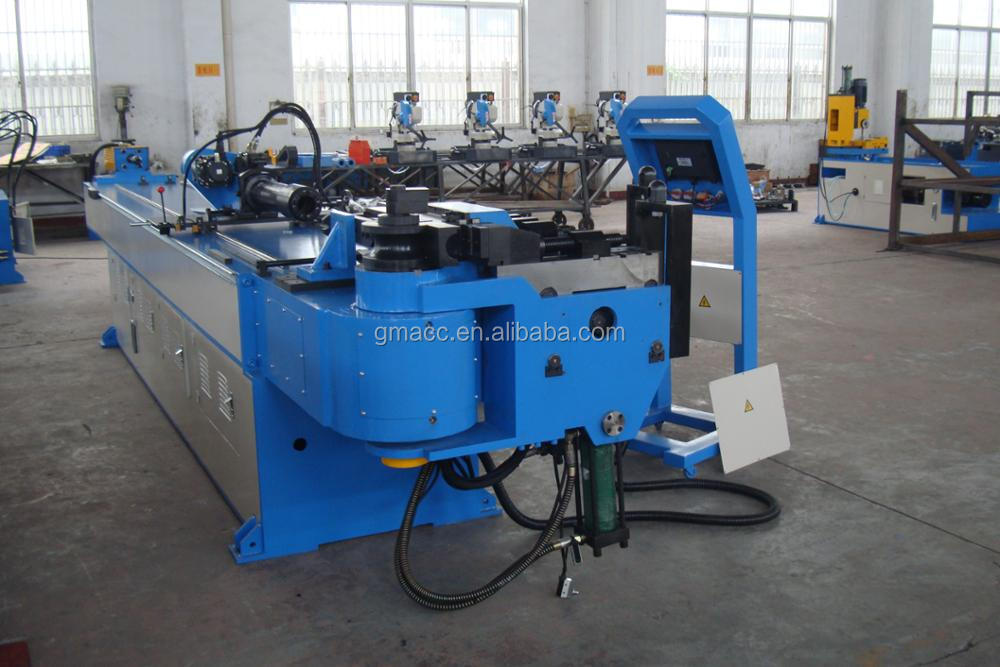

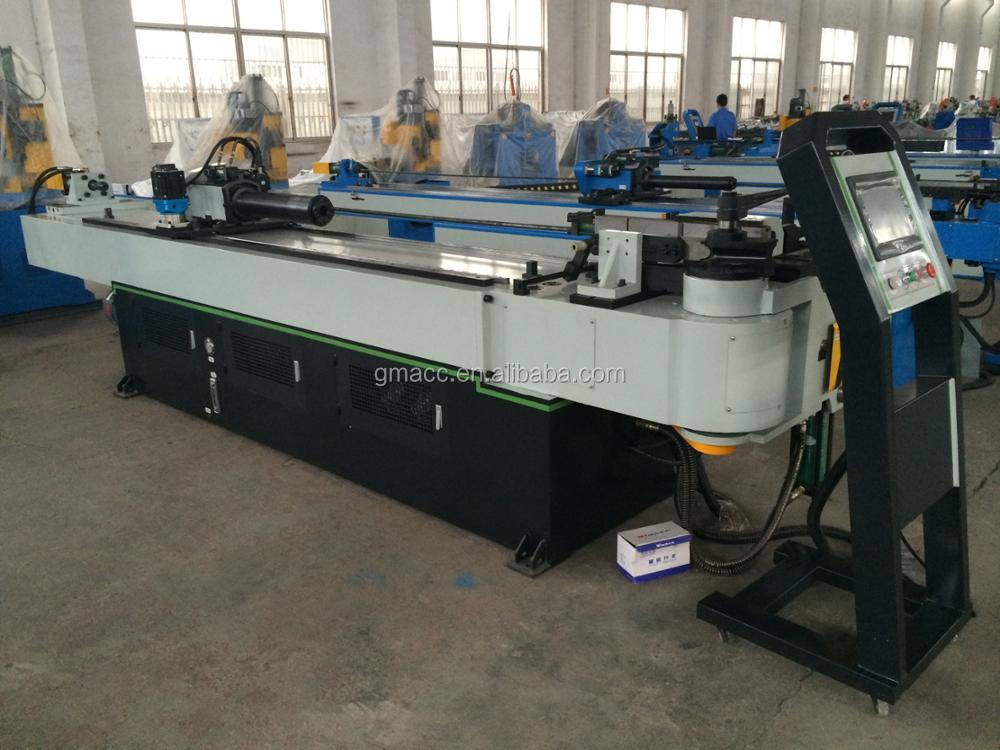

GM-SB-76CNC Full-Auto Numerical Control

Single-Head Bending Machine

Model:76×2A×1S

  • Machine Characteristics

GM-SB-76CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order,Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe bending(C axis), pipe rotating (B axis), and pipe feeding(Y axis) are all drove by closed ring servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.

  • Main Technical Parameter

Name

 Unit

Parameter

Max. Bending Capacity

mm

76*5

Bending Radius Range

mm

30-350

Max. Bending Angle

°

190

Bending Speed

°/sec

30

Turning Speed

°/sec

160

Feeding Speed

mm/sec

800

Bending Precision

°

±0.10

Turning Precision

°

±0.10

Feeding Precision

mm

±0.10

Turning Servomotor Power

kW

1

Feeding Servomotor Power

kW

1.5

Though Effective Distance

mm

2600

System Motor Power

kW

7.5

Max. Pressure

Mpa

16

Oil Pump Delivery Volume

L

25

L*W*H (Packaging Dimension)

mm

5000*1200*1350

Weight

 T

 3.5



  • Configuration of Hydraulic and Electronic Control System

Name

Manufacturer

Hydraulic Motor

Germany Siemens( Imported)

Hydraulic Pump

Japan Yuken(Imported)

Hydraulic Valve

Japan Yuken(Imported)

Oil way Board

Taiwan Shanghong (Imported)

Cylinder

Shanghai Jingsheng

Oil tube

Taiwan TATUNG(Imported)

Touch screen

Taiwan Weinview(Imported)

PLC

Japan Mitsubishi(Imported)

Servo Motor

Japan Mitsubishi(Imported)

Angle controller

Japan Nemicon(Imported)

Switch power

Japan Mitsubishi(Imported)

Contactor

Taiwan Weinview(Imported)

Other Electric Parts

German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
