rolling pipe tube bending machine

FOB Reference Price:Get Latest Price
US $9,000-10,000 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
5000 Set/Sets per Year
Port:
SHANGHAI
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GMACC
Model Number:
GM-SB-114CNC
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
Pipe
Material / Metal Processed:
Carbon Steel
Power:
Cnc
Automation:
Automatic
Extra Services:
Heat Treating
Certification:
ISO 9001:2000
After-sales Service Provided:
Engineers available to service machinery overseas
CERTIFICATE:
CE
Applicable material:
stainless steel,copper,aluminium
Packaging & Delivery
Packaging Details
Package:iron frame/wooden case
Delivery Time
within 25 working days after receiving 30% deposit

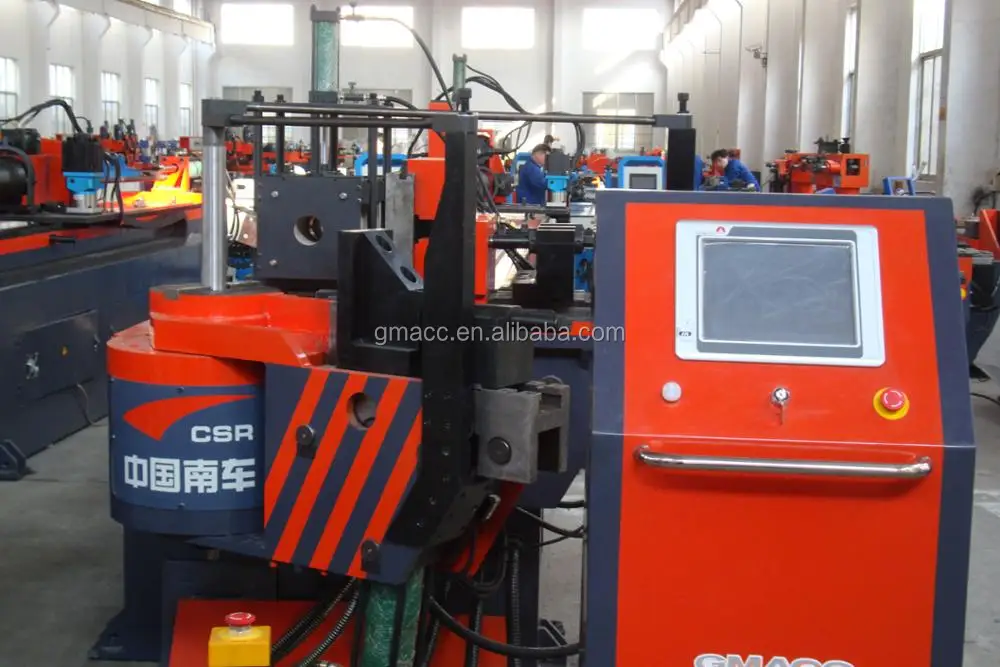

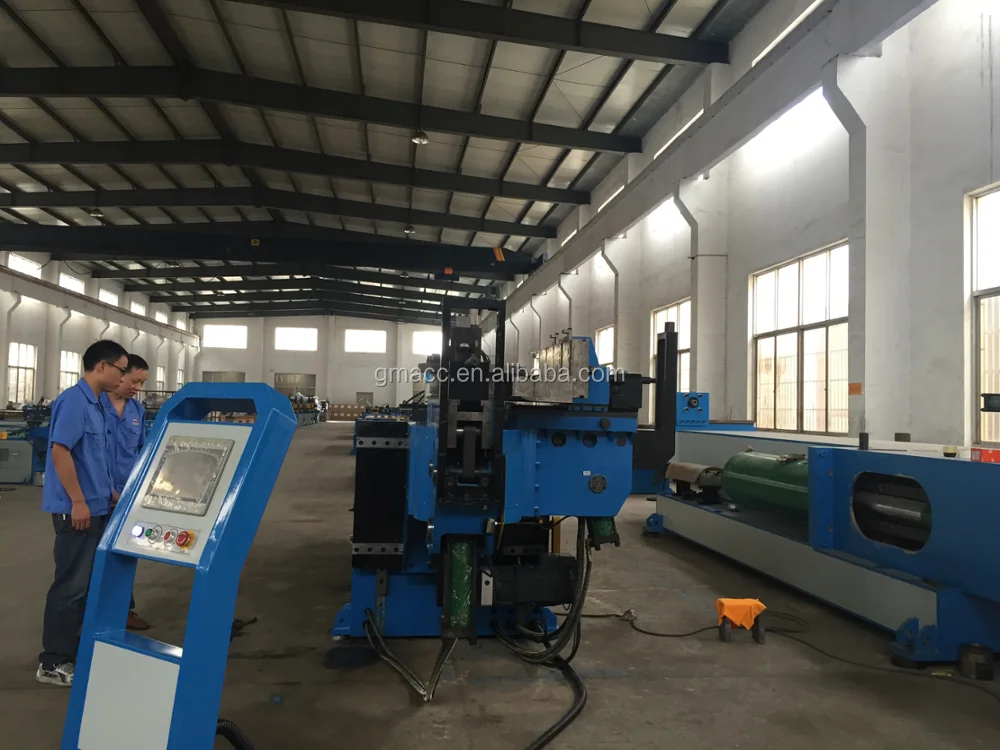

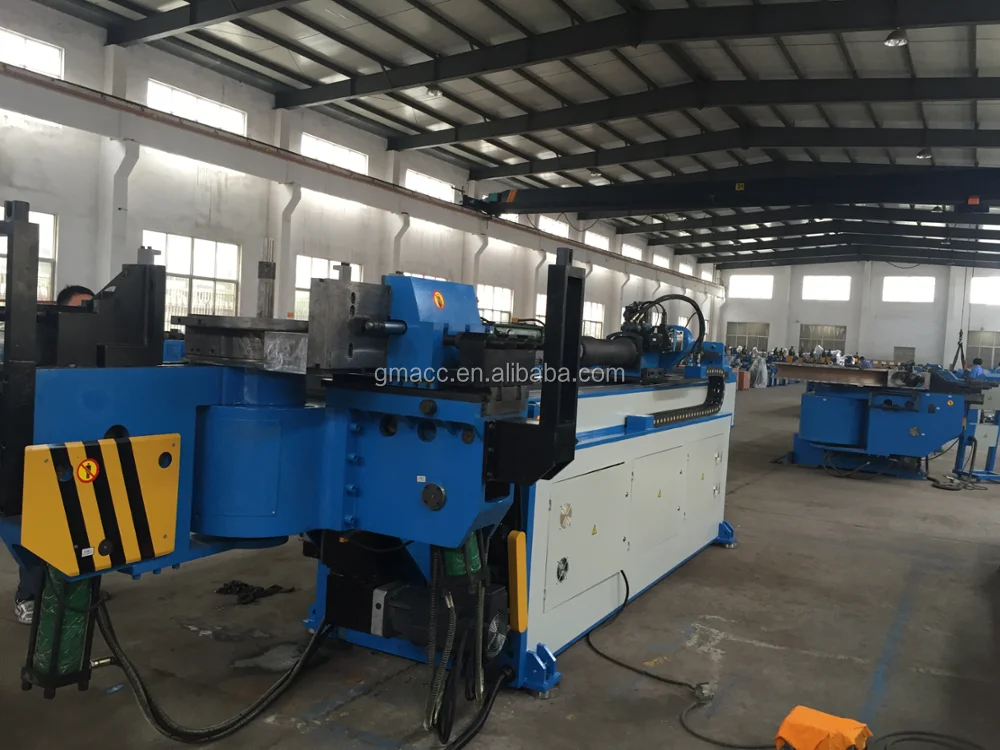

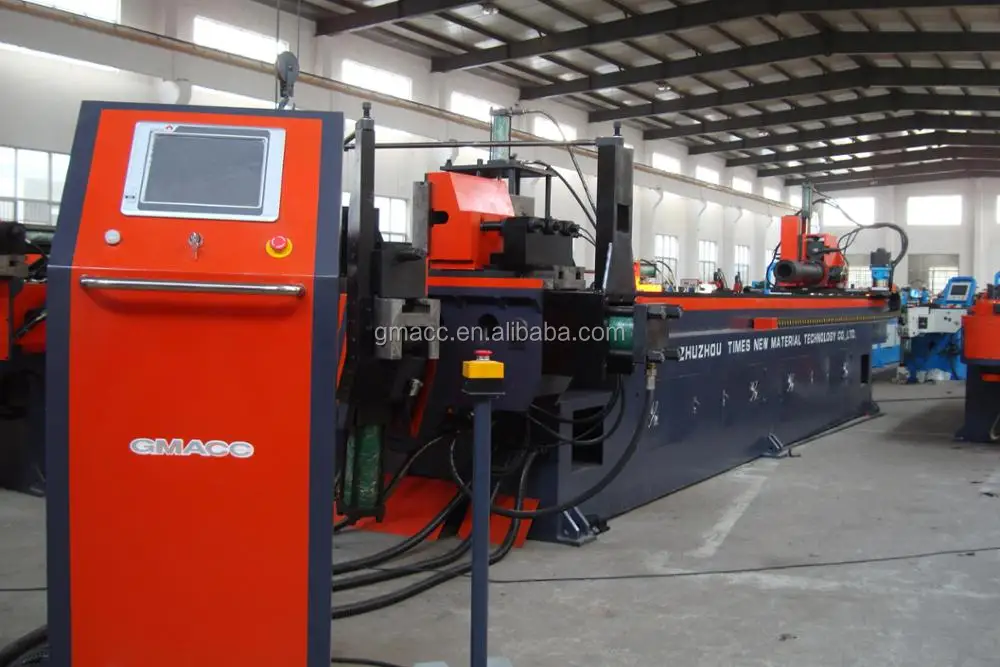

 Full-Auto Numerical Control Single-Head Bending Machine

GM-SB-114CNC

1,Applicable tube material: carbons steel, mild steel, soft steel, stainless steel, aluminum,

alloy, copper, brass etc.

2,Applicable tube shape: tube, solid bar, square, rectangle, oval, profile etc.

3,Controlled through PLC and possesses manual, semi-automatic and full-automatic functions.

4,Y, B, C three coordinates of motion under precision control by industrial computer

realizing full-auto mandrel on or mandrel off rapid bending.

5,Equipped with hydraulic-operated clamping tube, encoder-controlled

bending angle with precision more or less 0.1 degree.

6,About 200 programs can be inputted into PLC, then show on dialogue-style

operation touch screen, easy to learn and understand.

7,Various Touch screen language are available for choice as per request.

8,Adoption of hydraulic valve and oil way board can control actions individually to prolong

the lifespan of hydraulic parts.

9,Guiding module has auxiliary pushing function and at the same time it possesses

reiteration and entering repeat functions that can make the guiding module length shorten.

10,Counter function can accurately count work piece’s

quantity and save data whether in power-on or power-off situation.

11,Auto lubrication system to protect components and improve the working life

of machine.

12,Possess automatic error detection function and limit protecting function,

removing or changing faults easily and quickly.

13,Moveable foot switch with function of auto-start, pause and emergent-shop,

safe and convenient.

14,Optional function of core reversing slowly.

15,Optional function of slow bending.

16,Optional function of anticipated mandrel extraction.

Ø Main Technical Parameter

Name

 Unit

Parameter

Max. Bending Capacity

mm

114*8

Bending Radius Range

mm

40-500

Max. Bending Angle

°

190°

Bending Speed

°/sec

3200

Turning Speed

°/sec

20

Feeding Speed

mm/sec

160

Bending Precision

°

500

Turning Precision

°

±0.10

Feeding Precision

mm

±0.10

Turning Servomotor Power

kW

±0.10

Feeding Servomotor Power

kW

3

Though Effective Distance

mm

3

System Motor Power

kW

15

Max. Pressure

Mpa

16

Oil Pump Delivery Volume

L

36

L*W*H (Packaging Dimension)

mm

6500*1350*1300

Weight

 T

5.8



Ø Configuration of Hydraulic and Electronic Control System

Name

Manufacturer

Hydraulic Motor

Taiwan Guangyuan( Imported)

Hydraulic Pump

Japan Yuken(Imported)

Hydraulic Valve

Japan Yuken(Imported)

Oil way Board

Taiwan Shanghong (Imported)

Cylinder

Shanghai Jingsheng

Oil tube

Taiwan TATUNG(Imported)

Touch screen

Taiwan Delta,Japan Mitsubishi(Imported)

PLC

Taiwan Delta,Japan Mitsubishi(Imported)

Servo Motor

Taiwan Delta,Japan Mitsubishi(Imported)

Angle controller

German Omron(Imported)

Switch power

Taiwan Mean Well(Imported)

Contactor

Taiwan SHIHLIN(Imported)

Other Electric Parts

German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
