hydraulic metal pipe Bending Machine

  • >=4 Pieces
    $9,000.00
Max. Tube Diameter (mm):
63
Lead Time:
Quantity(Pieces) 1 - 3 >3
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction works , Energy & Mining
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
GMACC
Material / Metal Processed:
ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum
Automation:
Automatic
Extra Services:
Other
Certification:
CE
Power (kW):
5.5
Weight (KG):
3000
Bending Precision (Deg):
0.01
Max. Bending Angle (Deg):
190
Bending Radius (mm):
25 - 350
After-sales Service Provided:
Free spare parts, Online support, Video technical support, Engineers available to service machinery overseas
Warranty:
2 Years
Key Selling Points:
High-accuracy
Machine Type:
Pipe and Tube Bending Machine
Raw Material:
Sheet / Plate Rolling
CERTIFICATION:
ISO9001:2000
Applicable material:
stainless steel,copper,aluminium
Weight:
2500kgs
Supply Ability
Supply Ability:
50 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Package:iron frame/wooden case suitable for sea transportation
Port
Fob shanghai
Lead Time :
Quantity(Pieces) 1 - 3 >3
Est. Time(days) 25 To be negotiated

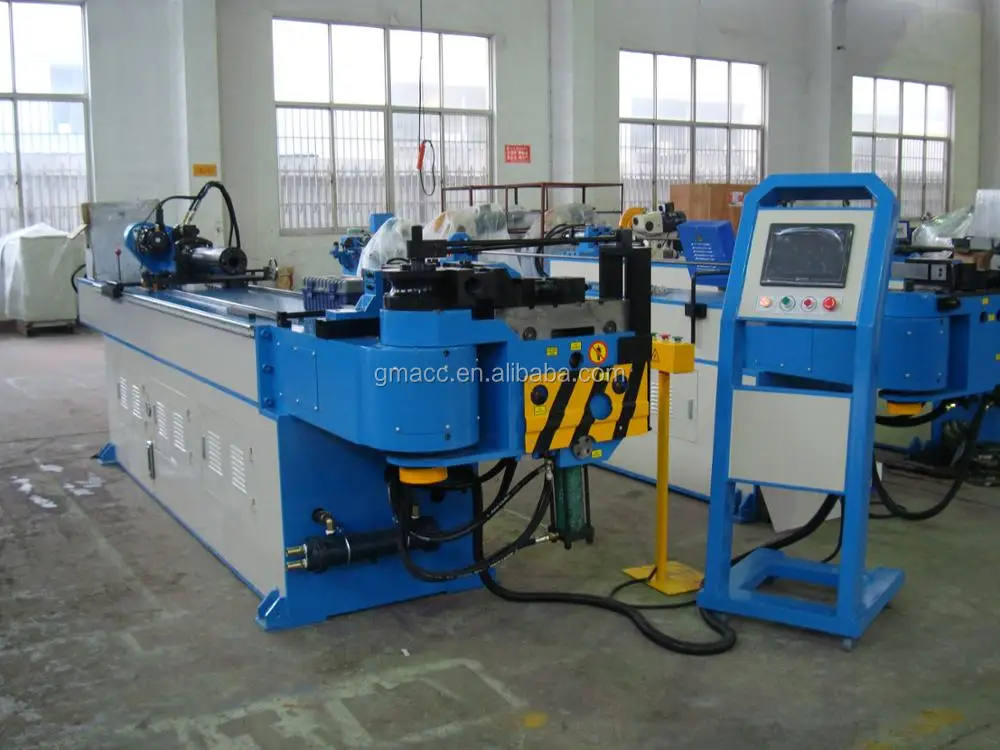

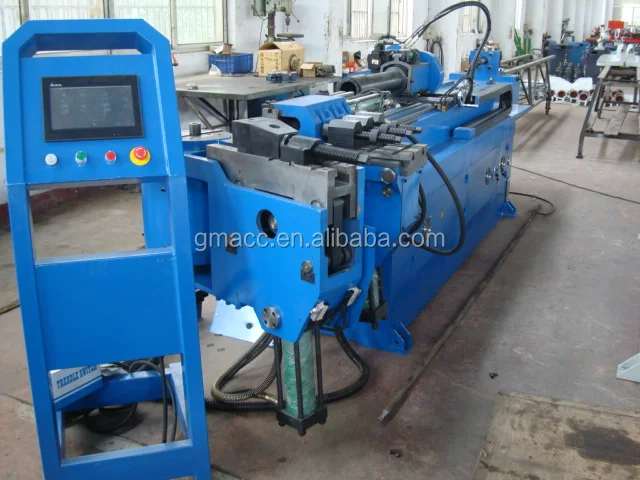

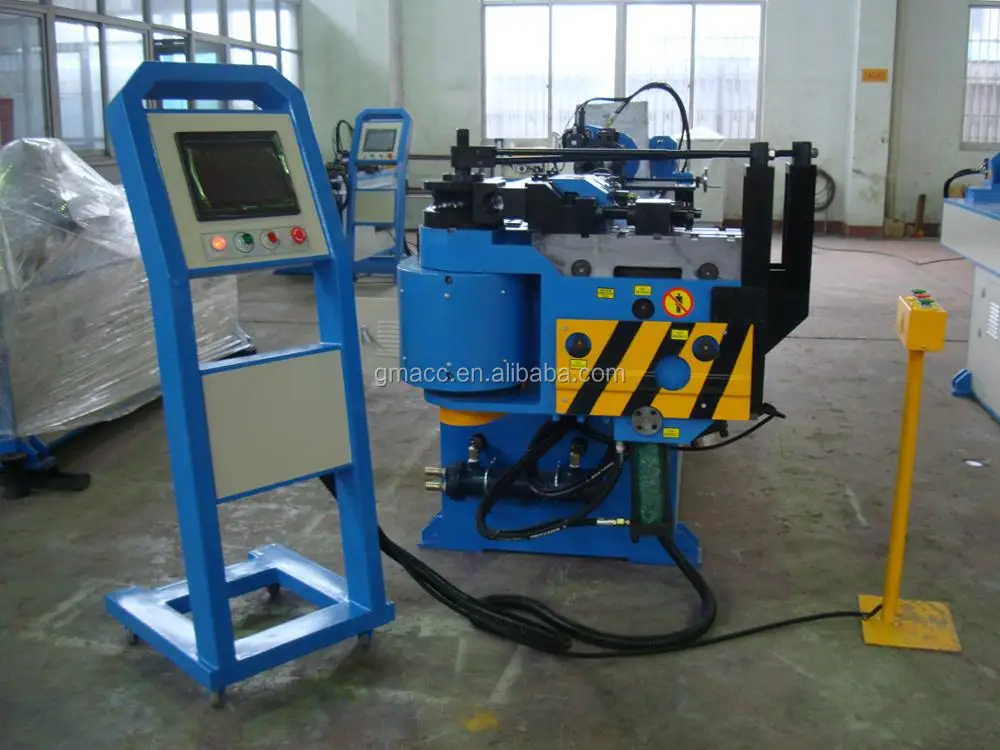

GM-SB-63NCBA Automatic three Dimensional

Pipe Bending Machine

Ø Machine Characteristics

GM-SB-63NCBA series single-head bending machine, importing advanced design technology from Italy, is a kind of automatic three-dimensional pipe bending machine, integrated with machine, hydraulic, and electricity. Various data and orders can be input and stored in advanced imported touch screen, which can automatically rotate the angle in three dimension continuously, besides, manual material feeding meets the requirement for processing precision of complicated work pieces all make NCBA series a professional and high speed European pipe bending equipment. It has the automatic rotation function.

Ø Main Technical Parameter

Name

Unit

  Parameter

Max. Bending Capacity

mm

 Ø 63*4

Bending Radius Range

mm

30-300

Max. Bending Angle

°

190°

Though Effective Distance

mm

3000

Bending precision

°

±0.10

Turning precision

°

±0.10

System Motor Power

KW

5.5

Max. Pressure

Mpa

16

L*W*H (Packaging Dimension)

mm

5000*1200*1300

Weight

T

3

Configuration of Hydraulic and Electronic Control System

Name

Manufacturer

Hydraulic Motor

Siemens Beide or Suzhou Runmali

Hydraulic Pump

Wuxi Tuoli

Hydraulic Valve

Japan Yuken(Imported)

Oil way Board

Suzhou Boguan

Cylinder

Shanghai Qifan

Oil tube

Suzhou Kejia

Touch screen

Taiwan Weinview(Imported)

PLC

Japan Mitsubishi(Imported)

Servo Motor

Japan Mitsubishi(Imported)

Angle controller

Japan Nemicon(Imported)

Switch power

Wenzhou Changxing

Contactor

German SCHNEIDER(Imported)

Other Electric Parts

German SCHNEIDER,Omron, Taiwan SHILIN(Imported)



Above configuration is common kind for CNC-2A-1S, which also can be equipped

with brand appointed by customers.
